Universal Cooling System Radiator Pressure Tester Gasket Test Kit Leak Detector

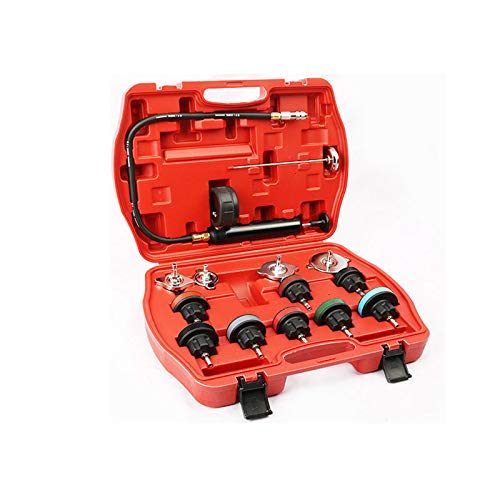

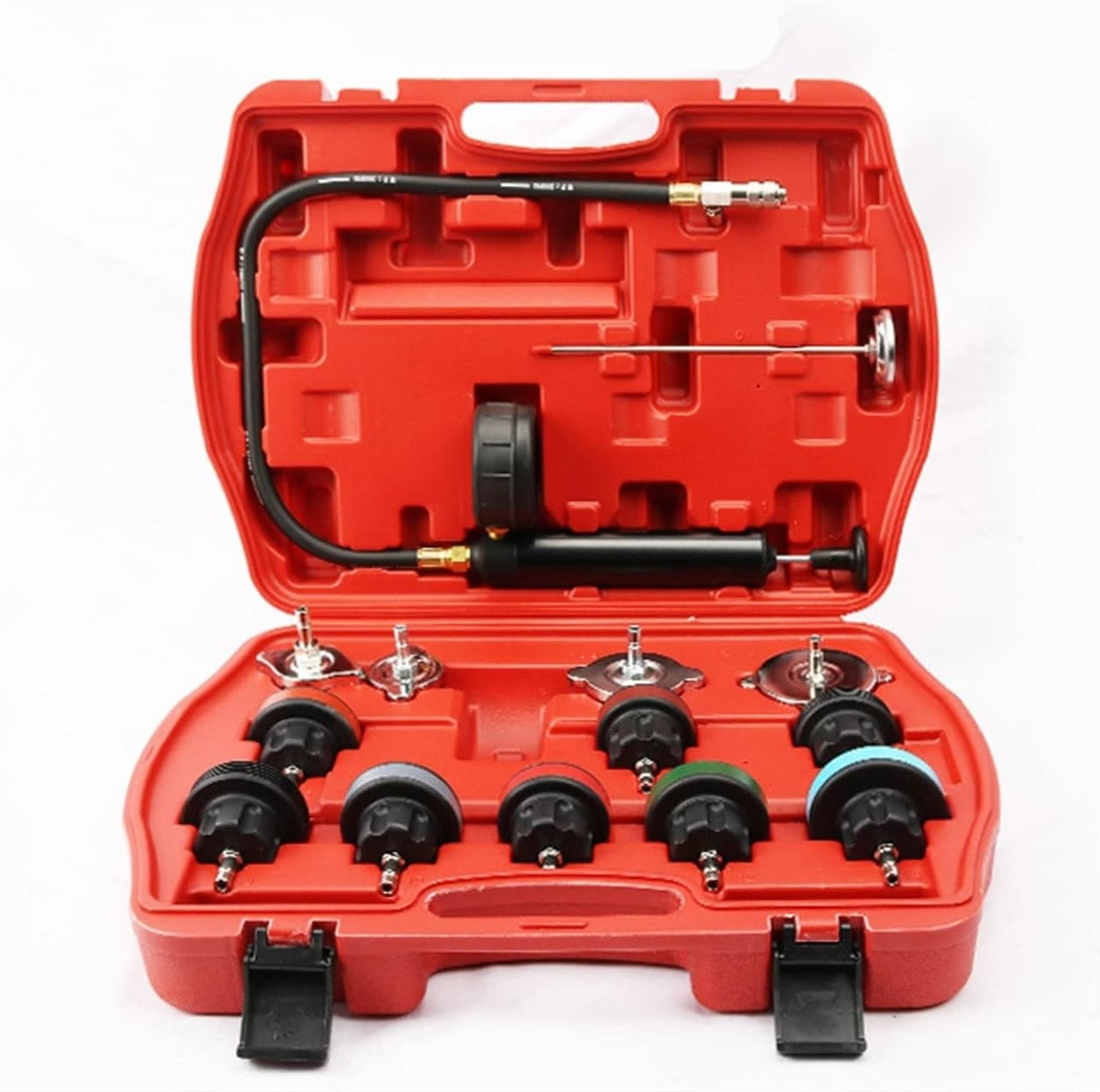

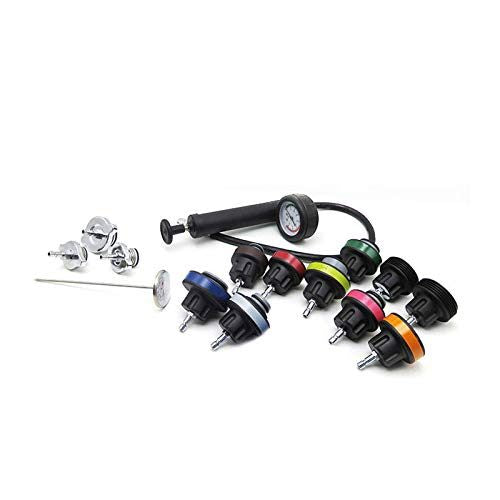

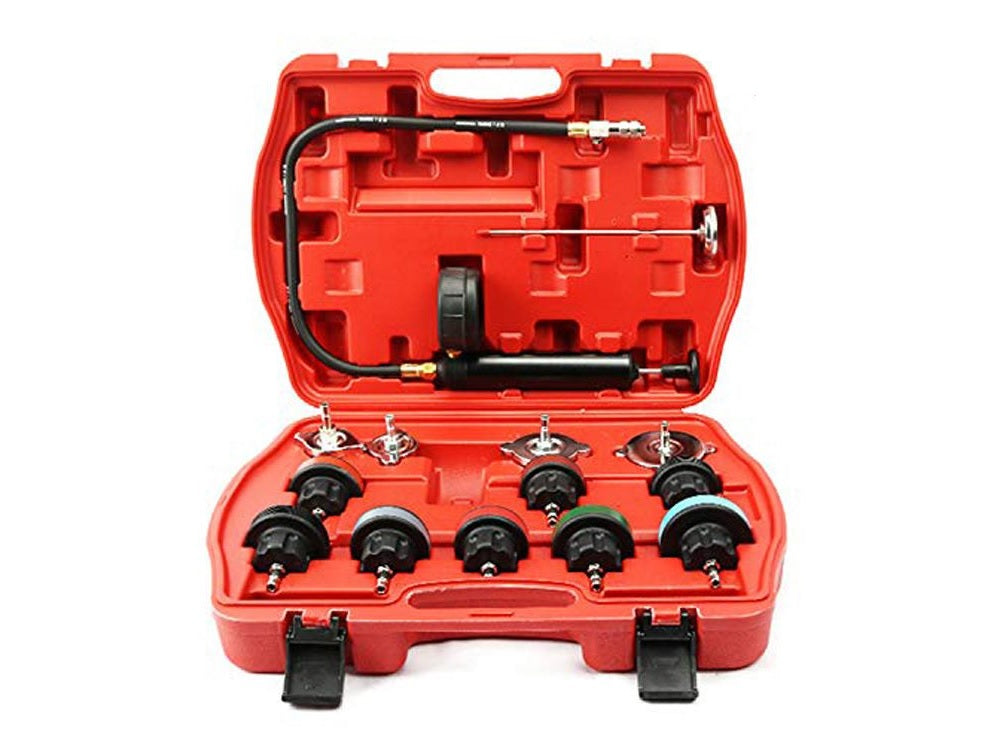

Radiator Pressure Tester 14PCS Cooling System Radiator Pressure Leakage Tester Kit

Radiator Pressure Tester x 1
Stainless Steel Needle Thermometer x 1
Dedicated Radiator Adapter x 8
Aluminum Cap Adapter x 4
Instruction x 1

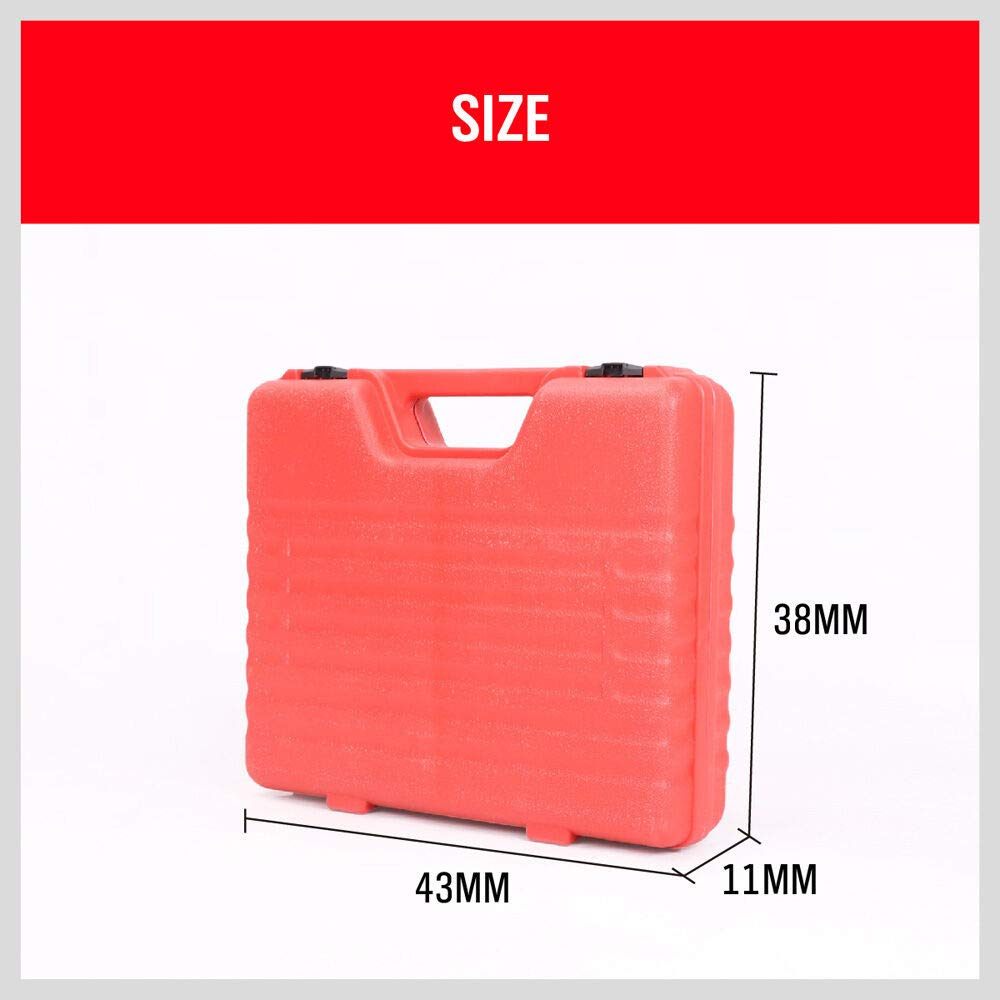

Red Custom-made Toolbox, 13-1/4 x 11-1/4 x 4 inches x 1
PS:
Something you need to prepare yourself: Vacuum pump, and air hose

Radiator Pressure Tester

For Pressure Leakage Test

a. Advantages of Radiator Pressure Tester:
Accurate and quick test on the radiator, heater core and radiator cap
Convenient designs like integrated construction, quick coupling and thumb-operated pressure relief valve
Hand pump gauge tester features easy to read pressure gauge with anti-scratch rubber housing

b. Testing Process:
(1) Pick a suitable adapter from Radiator Pressure Tester to replace the radiator opening, connect the pressure tester to the selected adapter.
(2) Press the manual pump to pressurize the inside of the radiator till the readout up to 10-15 psi. Don't over 35 psi.
(3) Wait for a while to see if the gauge pointer moves. Reading drops means there is a leak. Release the residue pressure and disconnect the adapter.

Wide Application of Water Tank Adapters

Aluminum Cap Adapters(From No.2 to No.5)
No.2 Fits for GM(Cadillac);
No.3 Fits for Benz, GM(Buick), Jeep;
No.4 Fits for Peugeot, Subaru, Chrysler, Acura, GM(Nova, Spectrum, Sprint), Mitsubishi, Nissan, Mazda, Toyota, Infiniti, Geo, Suzuki, Isuzu;
No.5 Fits for Honda, Toyota, Suzuki, Mitsubishi, Chrysler, Acura;

Radiator Adapters(From No.6 to No.13)

No.6 Fits for Benz(ML-CLASS), GM(ACHIVA, SKYLARK, GRAMD AM-1992-2002);
No.7 Fits for Volvo, Saab, Sterling, Citroen, Renault, Fiat, Alfa, Jeep;
No.8 Fits for VW(Vento, T4, Passa-1996, Golf);
No.9 Fits for Audi(A4, A5, A6), BMW345, VW(Passa-1997-2002);
No.10 Fits for BMW;
No.11 Fits for Audi, VW;
No.12 Fits for Ford, International, GM, Land Rover;
No.13 Fits for Benz

1 * Radiator Pressure Tester
