30W Mono Solar Panel 18V

30W Monocrystalline Solar Panel

Product Overview:

The 30W Monocrystalline Solar Panel is designed for various applications, including cars, trucks, motorcycles, boats, RVs, and camping. This lightweight, durable panel ensures efficient energy generation in a compact form factor.

Specifications for 30W Monocrystalline Solar Panel:

• Maximum Power (Pmax): 30W
• Output Tolerance: +3%
• Maximum System Voltage: 700V
• DC Open Circuit Voltage (Voc): 21.6V
• Short Circuit Current (Isc): 1.82A
• Maximum Power Voltage (Vmp): 18V
• Maximum Power Current (Imp): 1.66A
• Cell Efficiency: 19.5%
• Operating Temperature (NOCT): 45°C
• Temperature Range: -20°C to +80°C
• Number of Cells: 36 pcs
• Weight: 0.58 kg

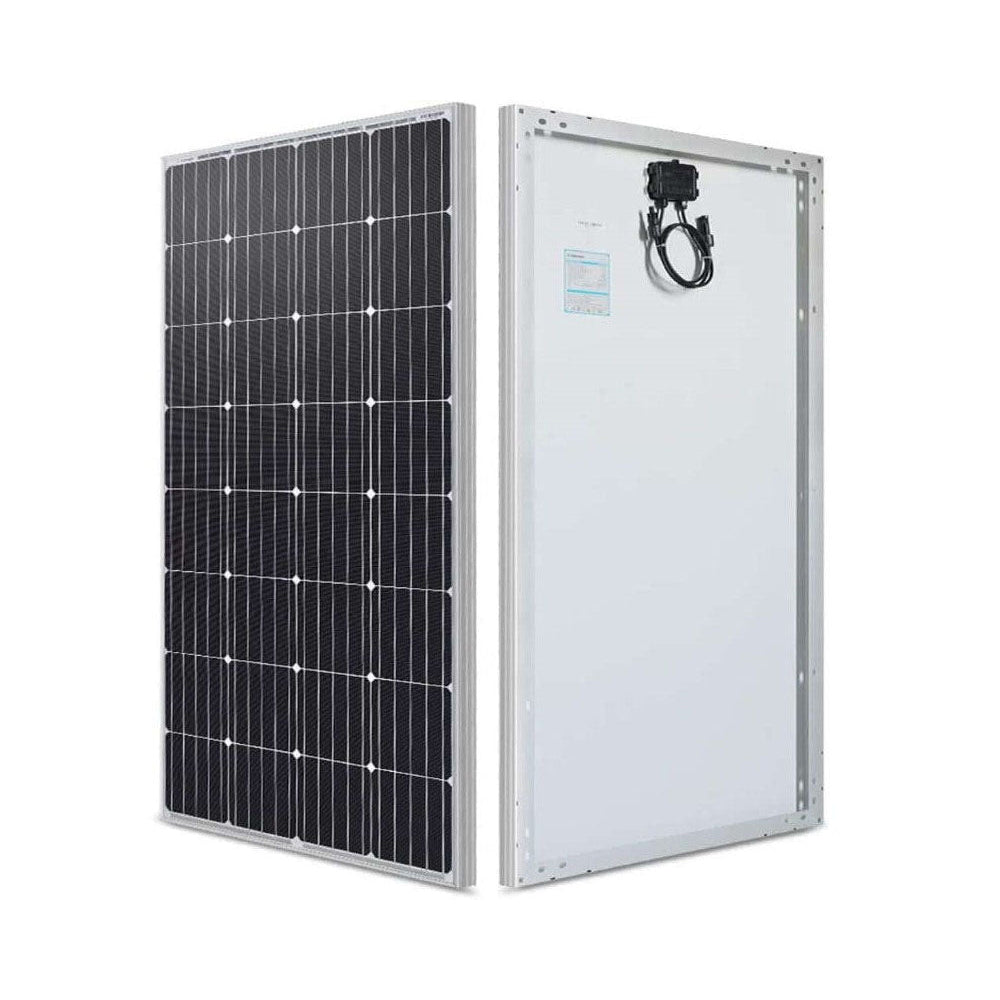

• Size: 650 x 350 mm
• Standard Test Conditions: Irradiance 1000 W/m², Temperature 25°C, AM 1.5

Features:

• Durable Construction: TPT backsheet design, eliminating the need for glass.
• Lightweight and Portable: Easy to carry and install, perfect for various applications.
• Thin Profile: Only 30mm thick, easily integrates with yacht or RV roofs, boats, etc.

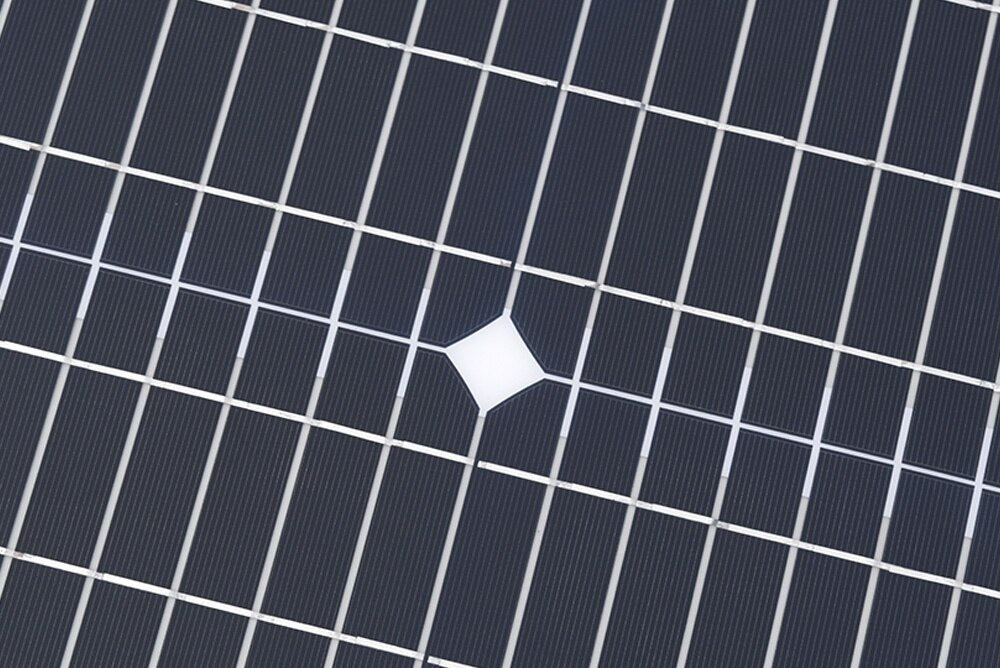

• High Efficiency: Made with high-efficiency monocrystalline silicon, achieving up to 19.5% efficiency.
• Enhanced Power Generation: Compact size provides 30% more power than conventional models.
• Scratch-Resistant Surface: Hardening process ensures durability.
• Versatile Installation: Can be installed with glue, adhesive, screws, or grommets in the corners.
• Wide Range of Applications: Ideal for golf carts, yachts, caravans, electric cars, roof power generation, portable generators, and more.
• Battery Charging: Efficiently charges 12V batteries, preventing issues like a dead battery in vehicles.

Packaging Includes:

• 1 x 30W Monocrystalline Solar Panel
