Product description

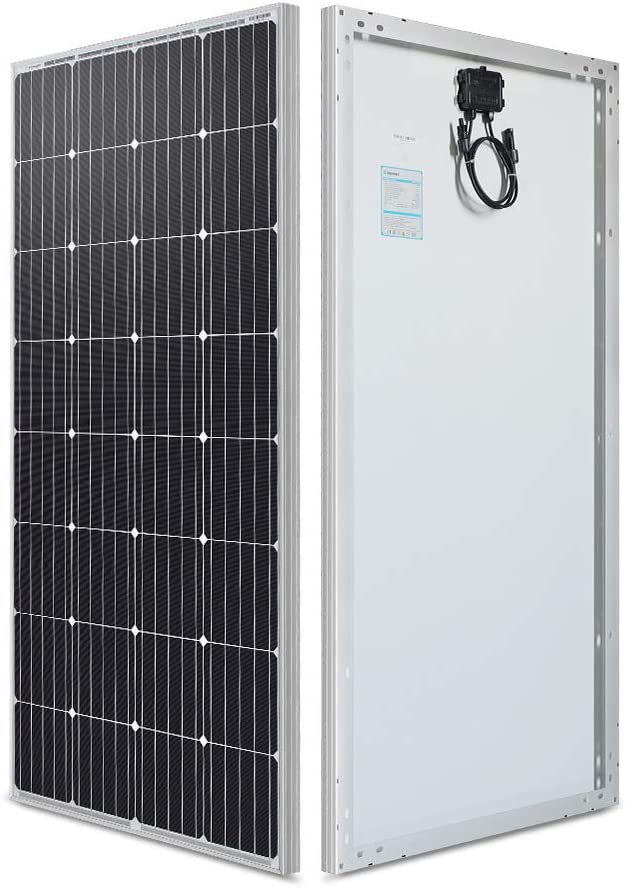

200W High-Efficiency Mono-crystalline Solar Panel with Trinasolar® Cells

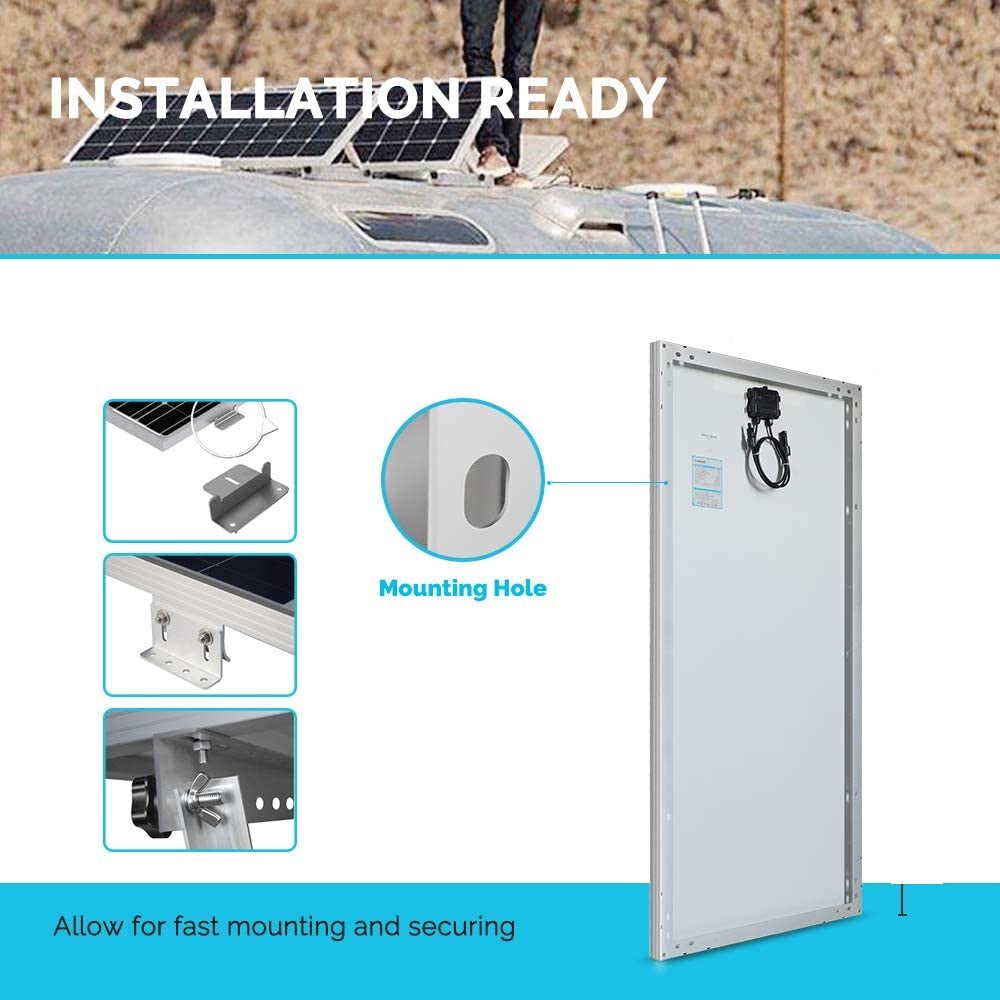

Our 200W solar panel is crafted with high-efficiency A-grade Mono-crystalline Trinasolar® cells, ensuring superior solar energy production. Ideal for various applications, it features robust construction and easy installation, making it perfect for both residential and commercial use.

Features:

  • High Efficiency: Manufactured with A-grade Mono-crystalline Trinasolar® cells, offering excellent solar energy conversion efficiency.

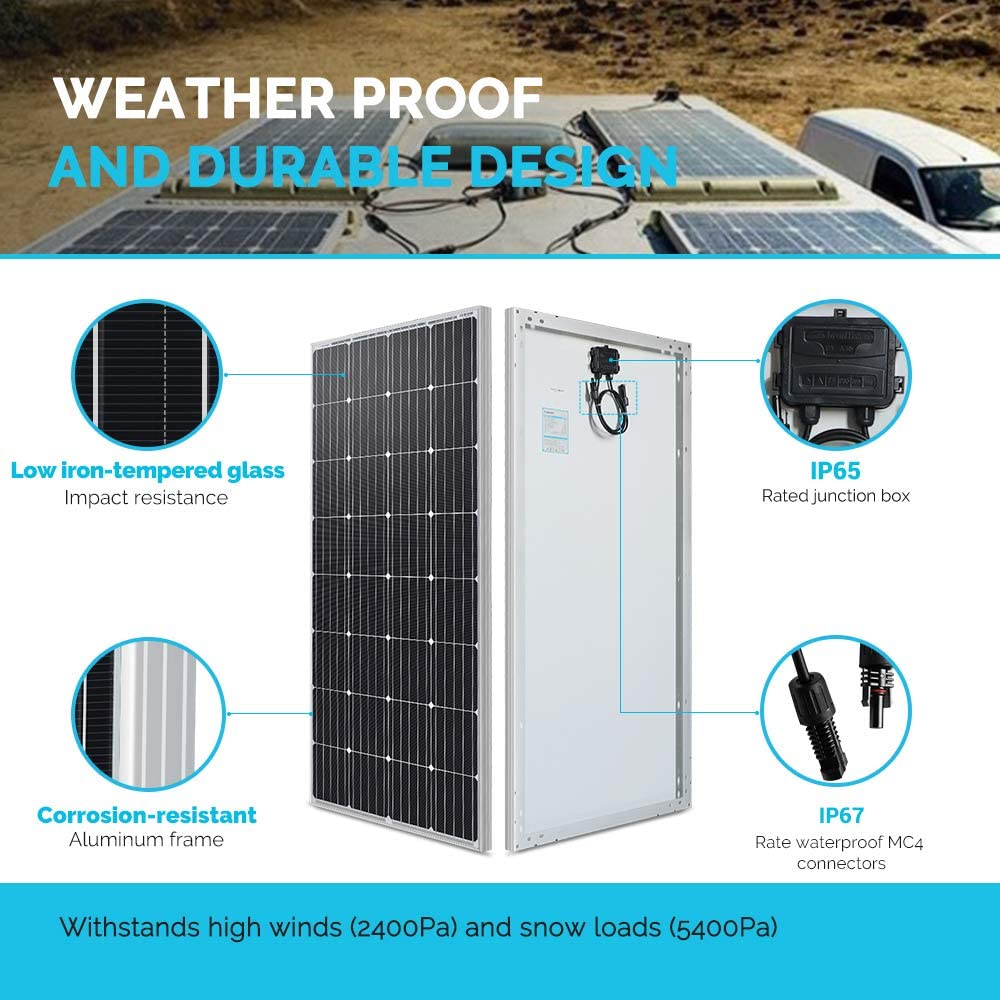

  • Reliable Protection: The junction box with a weather-tight seal has an IP65 rating and includes a built-in bypass diode for protection against partial shading. Supplied with 900mm of cable for each positive/negative terminal, with standard MC4 connectors for easy and secure connections.

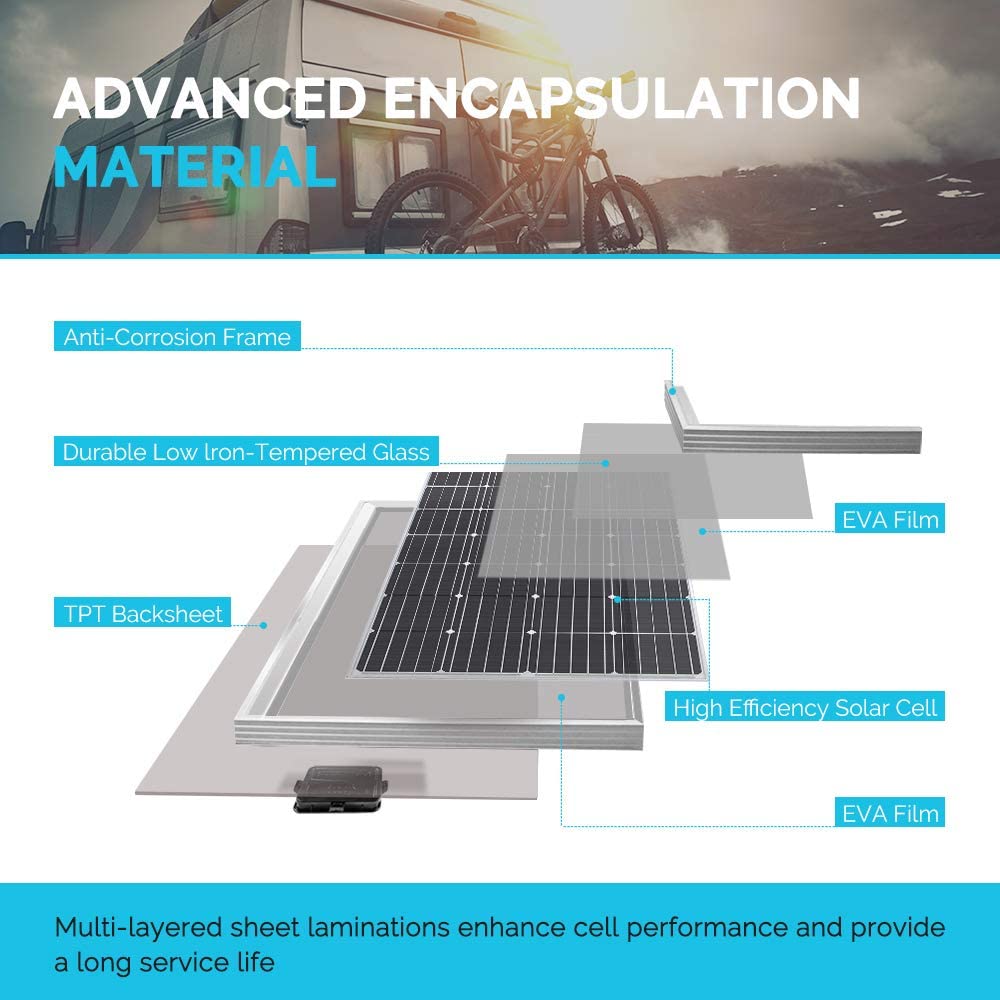

  • Durable Construction: Designed with 3.2mm tempered glass and a corrosion-resistant frame, this panel is built to withstand harsh weather conditions and provide long-term durability.

Specifications:

  • Waterproof: IP65
  • 3.2mm tempered glass
  • Max Power (Pmax): 200W +/- 3%
  • Max Power Voltage (Vmp): 36V
  • Max Power Current (Lmp): 5.56A
  • Open Circuit Voltage (Voc): 43.2V
  • Short Circuit Current (Isc): 6.1A
  • Max System Voltage: 1000V
  • Max Series Fuse: 10A
  • Power Tolerance: ±3%
  • Cell Efficiency: 20.50%
  • Module Efficiency STC: 18.47%
  • Operating Temperature Range: -40°C to +85°C
  • Cell Type: Mono-crystalline Trinasolar®
  • Dimensions: 1580*810*30mm
  • Weight: 13.3kg
  • Temperature Coefficient of Pmax: -0.435%/°C
  • Temperature Coefficient of Voc: -0.35%/°C
  • Temperature Coefficient of Isc: 0.043%/°C
  • Normal Operating Cell Temperature: 47°C ± 2°C
  • Wind Load: 2400 Pascal
  • Snow Load: 5400 Pascal
  • Application Class: Class A
  • Fire Rating: Class C

Packaging Content:

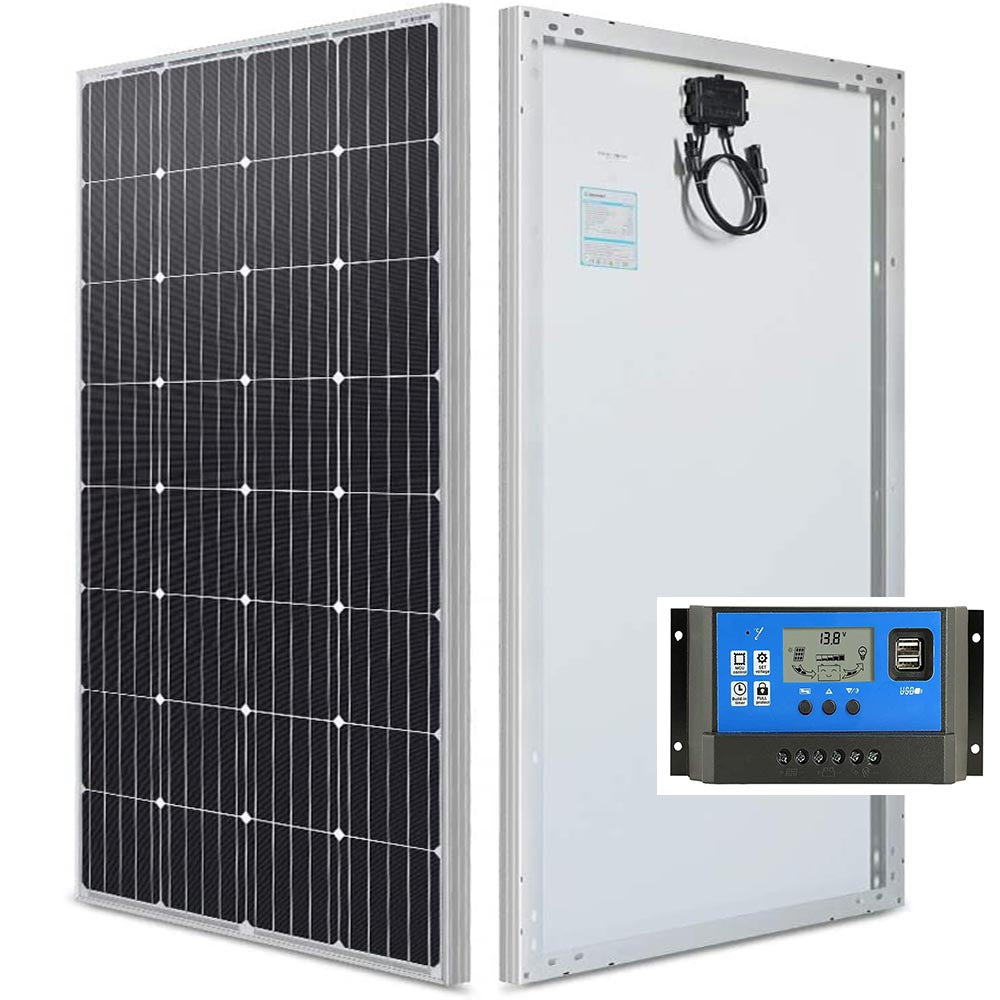

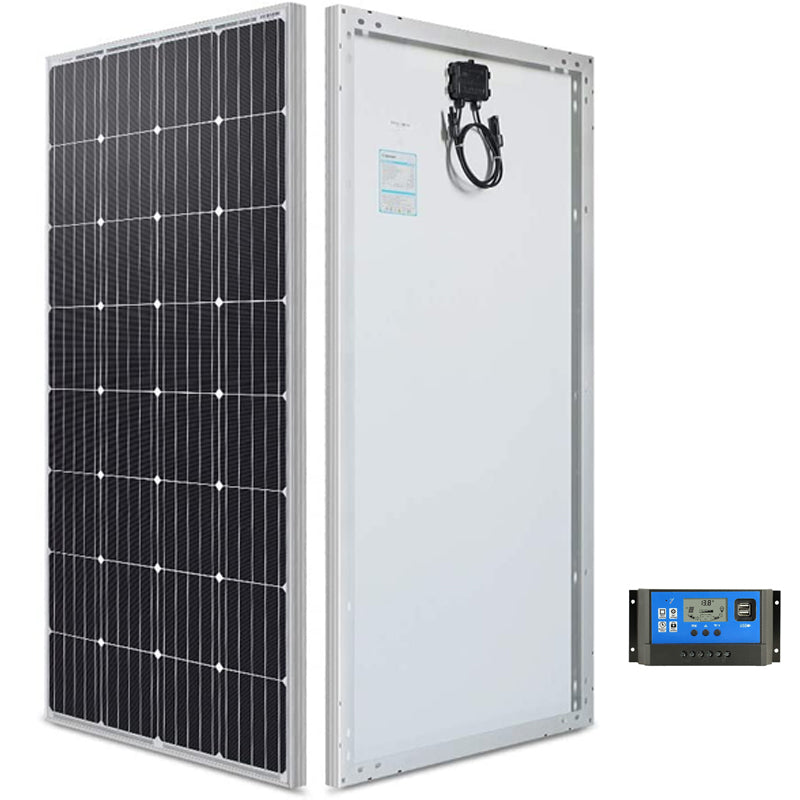

  • 1 x High-Efficiency 200W Solar Panel
  • 1 x 50A Solar Controller

We also offer solar panels in various capacities including 20W, 30W, 50W, 100W, 150W, 200W, 260W, 280W, and 320W. Please check our store for more options.
