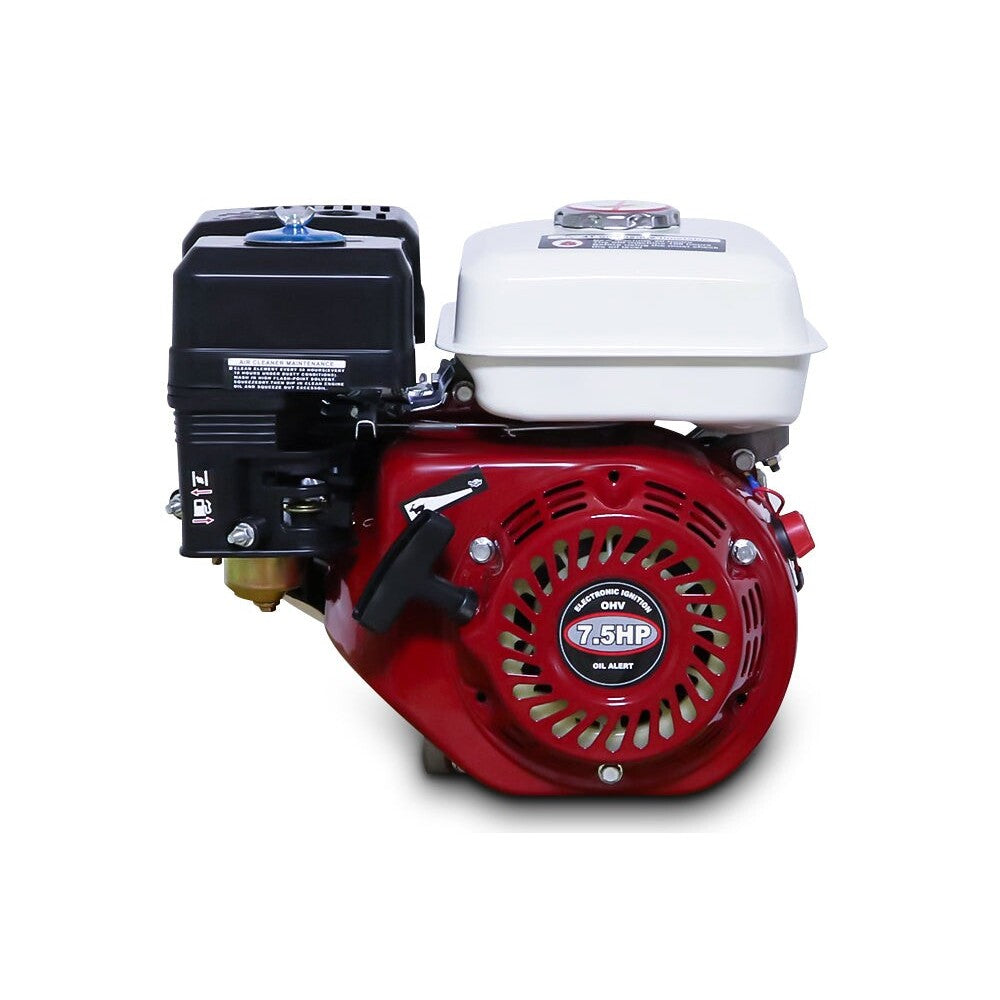

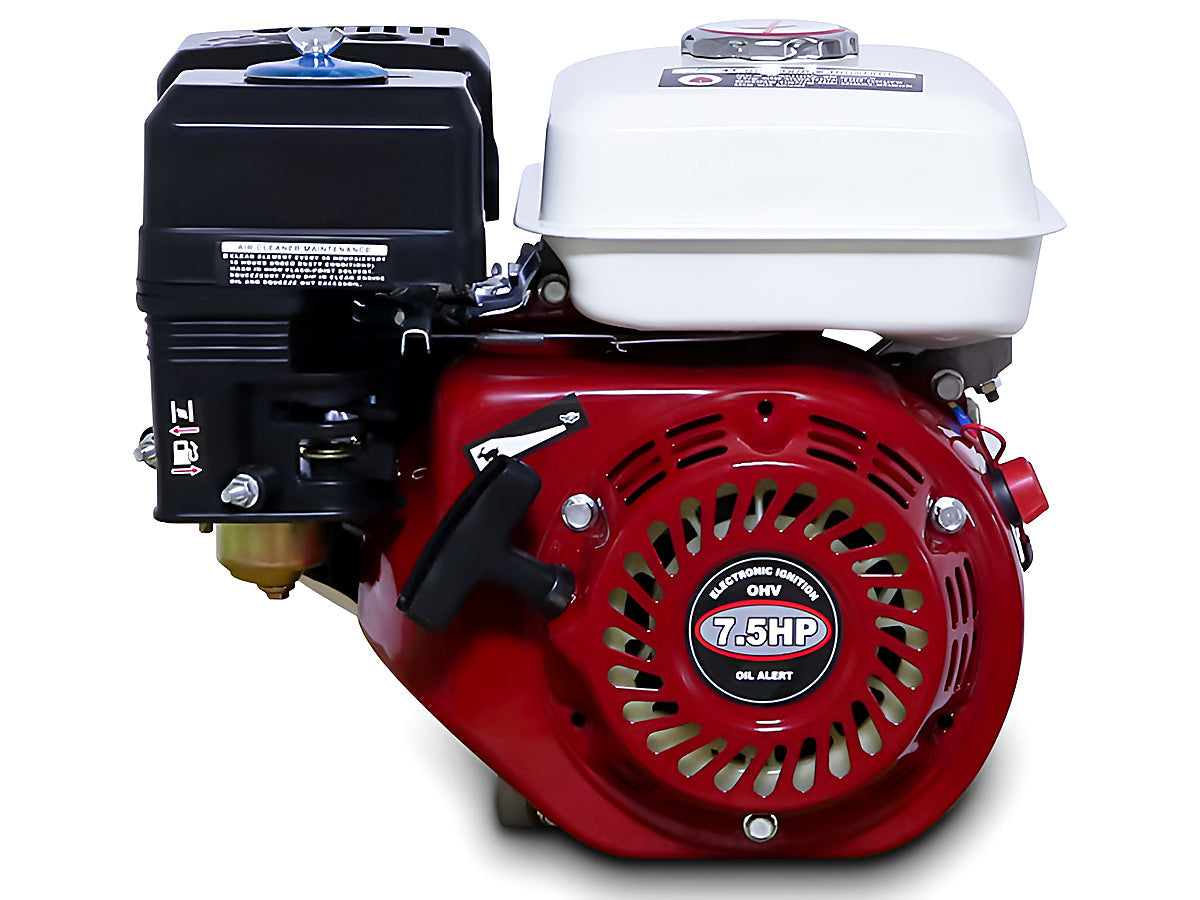

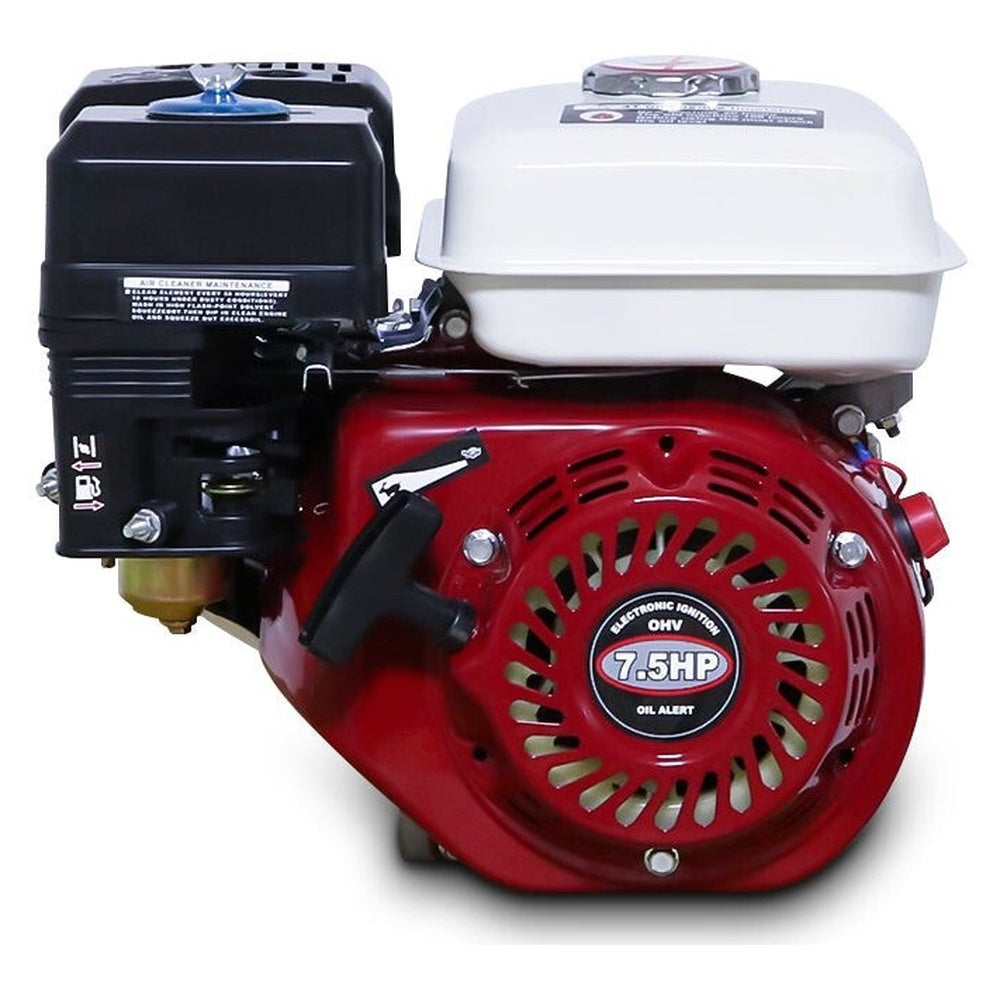

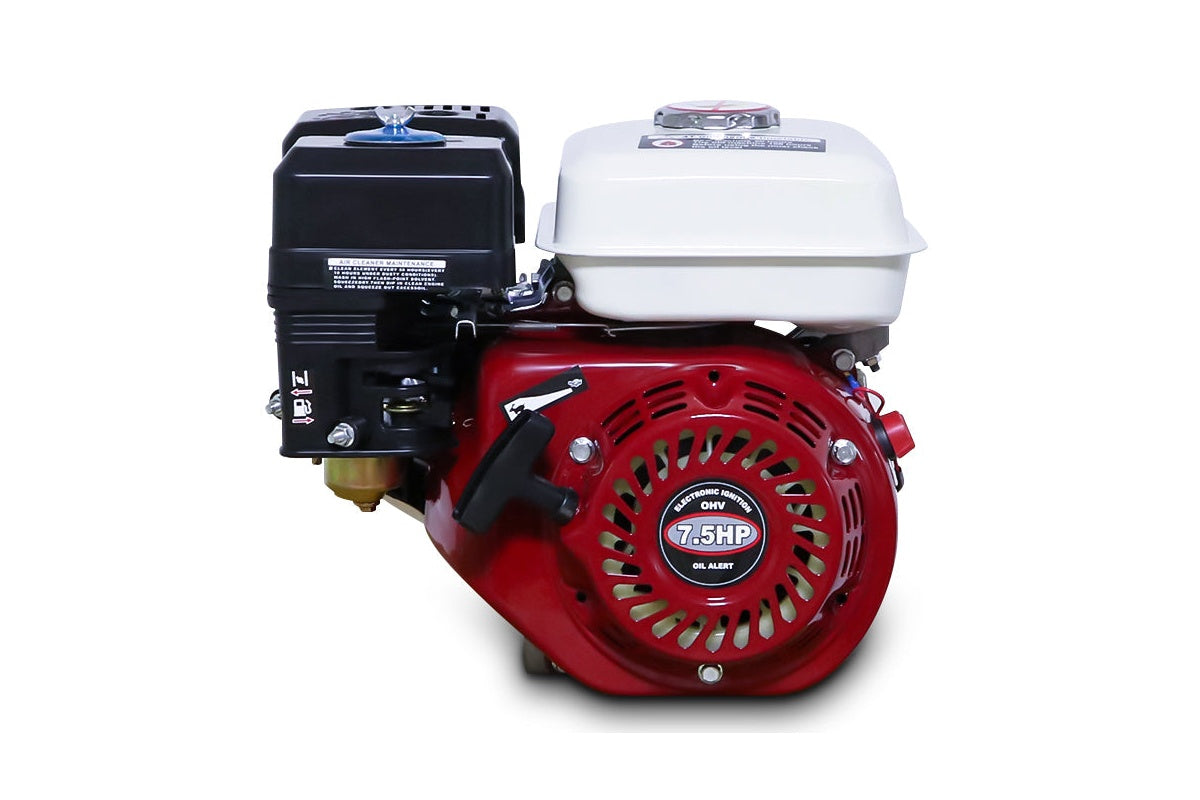

4 Stroke 210cc 7.5HP Gasoline Engine Portable Engine for Pump
Overview:
This powerful 7.5HP petrol engine is designed for a variety of applications including water blasters, rotary hoes, air compressors, plate compactors, pumps, power trowels, wood splitters, and go-karts. With its robust construction and efficient performance, this Petrol engine is ideal for both professional and DIY projects.
Features:
210cc Petrol Engine: Provides reliable power for a range of applications.
4-Stroke Single Cylinder: Ensures smooth and efficient operation.
Fuel Tank Capacity: 3.6L, allowing for extended run times.
Output Power: 5.5KW at 3600rpm.
Specifications:
Engine Type: Single Cylinder, 4 Stroke, Air Cooler, Fixed Valve
Rated Power: 5.5kw/3600rpm
Corresponding Speed: 2500rpm
Max. Torque: 12.4N·m
Fuel Consumption Rate: ≤395g/kw/h
Idle Speed: 1800±150
Speed Fluctuation Rate: 10%
Noise Level: ≤70 dB(A)
Cylinder X-Stroke: 68mm x 54mm
Displacement: 210cc
Lubrication Mode: Splash Lubrication
Starting Mode: Hand Start
Outline Size: 312mm x 237mm x 335mm
Mounting Dimensions: Lengthwise - 164mm (center hole to center hole, bolt hole 10mm), Widthwise - 77mm (center hole to center hole, elliptical hole 10mm x 14mm)
Drive Shaft Diameter: 20mm (0.786 inches)
Length of Drive Shaft: 50mm (1.97 inches)
Rotation Mode: Counterclockwise from the end of the output shaft
Air Filter Type: Semi-dry, oil bath, foam filter core
Ignition Mode: Transistorized magneto
Package Includes:
1 x 7.5HP Petrol Engine
