Product description

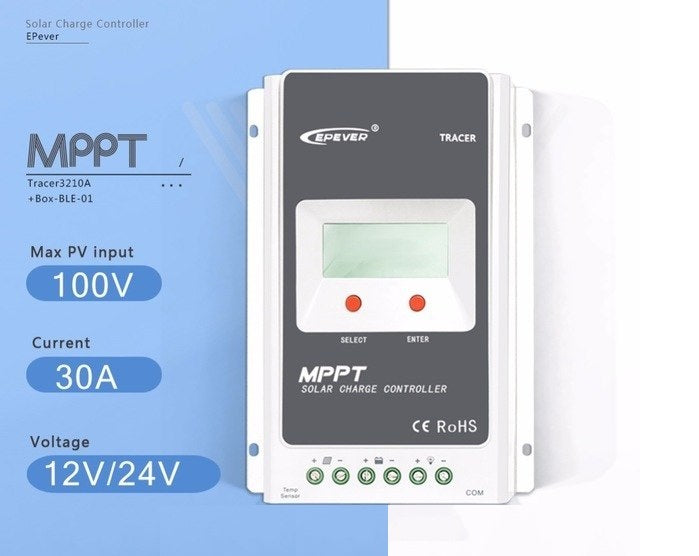

30A Tracer MPPT Solar Charge Controller Regulator

Product Overview:

The 30A upgrade Tracer 3210AN MPPT Solar Charge Controller is designed for efficient and reliable solar power management. Suitable for both 12V and 24V systems, it incorporates advanced MPPT technology to ensure high efficiency and optimal performance.

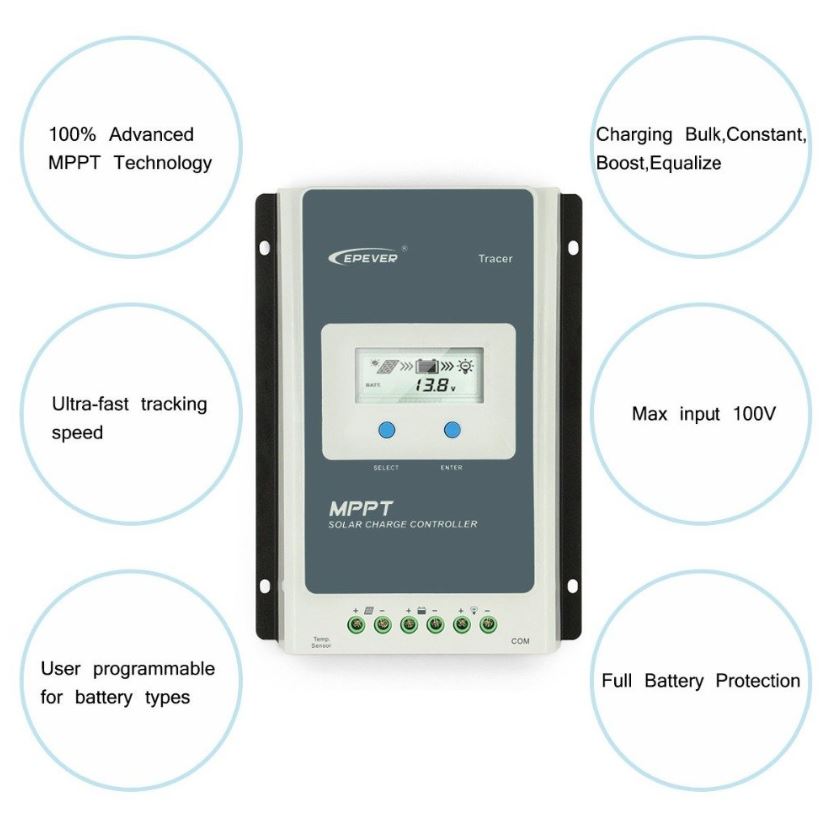

Key Features:

  • Multiple Load Control Modes: Offers manual control, lighting ON/OFF, and light On+Timer modes for versatile applications.
  • Advanced MPPT Technology: Ensures an efficiency of no less than 99.5%, maximizing the power output from your solar panels.
  • Wide MPPT Operating Voltage Range: Accommodates various solar panel configurations.
  • Auto Voltage Identification: Automatically identifies system voltage (12/24VDC).
  • CD Display Design: Dynamically displays operating data and working conditions for easy monitoring.
  • PC Monitoring and External Display: Enables real-time data checking and parameter setting through external devices.

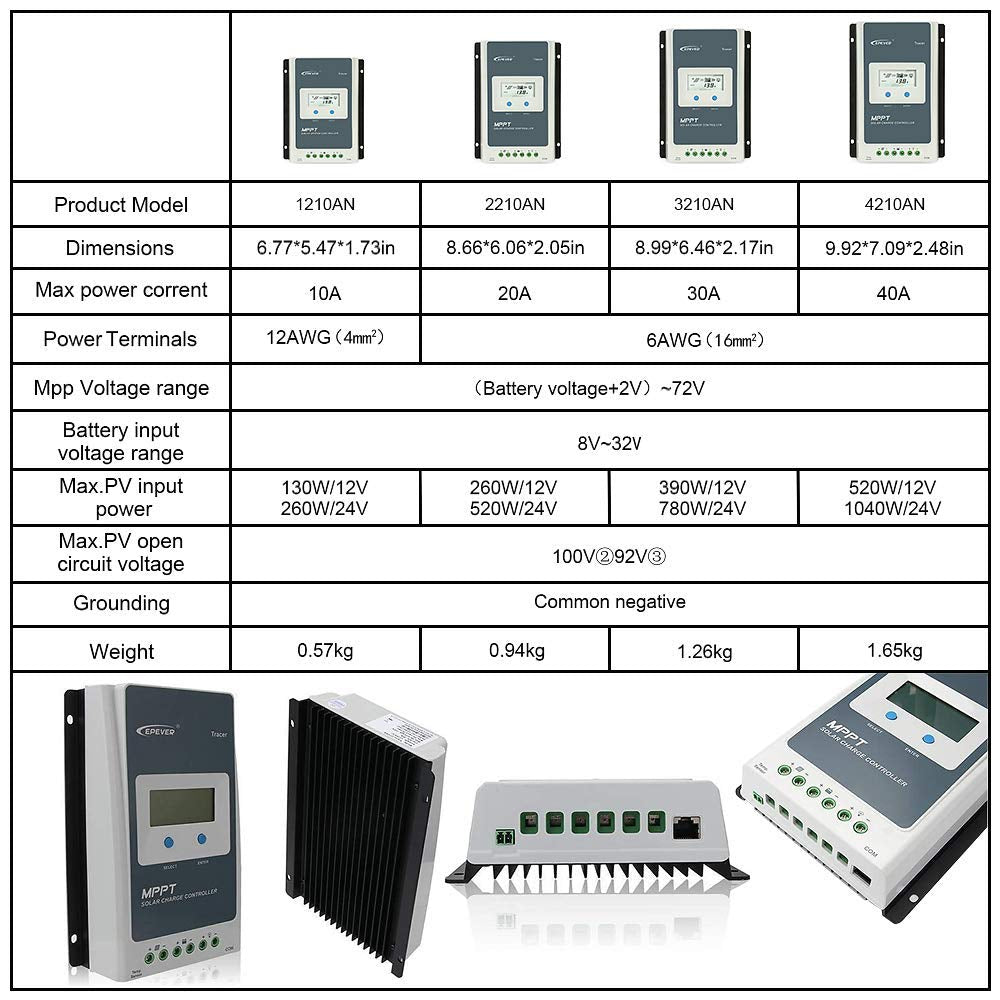

Specifications:

  • Rated Charge Current: 30A
  • Rated Discharge Current: 30A
  • Battery Input Voltage Range: 8-32V
  • Max. PV Open Circuit Voltage: 100V
  • Max. PV Input Power: 12V/390W, 24V/780W
  • Dimensions: 228 x 164 x 55 mm
  • Net Weight: 1.2 kg
  • Enclosure: IP30

Electronic Protections:

  • PV reverse polarity protection
  • PV short circuit protection
  • PV over current alarm protection
  • Load short circuit protection
  • Load overload protection
  • Controller overheating protection
  • Battery overvoltage protection
  • Battery over discharge protection
  • Battery reverse polarity protection



Diversified Load Control Modes:

  • Manual
  • Light ON/OFF
  • Light ON + Timer
  • Time Control

Battery Type Selection:

  • Gel
  • Sealed
  • Flooded
  • USER type

Package List:

  • 1 x Tracer 3210AN Solar Charging Controller
  • 1 x User Manual

This comprehensive MPPT solar charge controller ensures efficient solar power management with its advanced features and robust protections.
