Product description

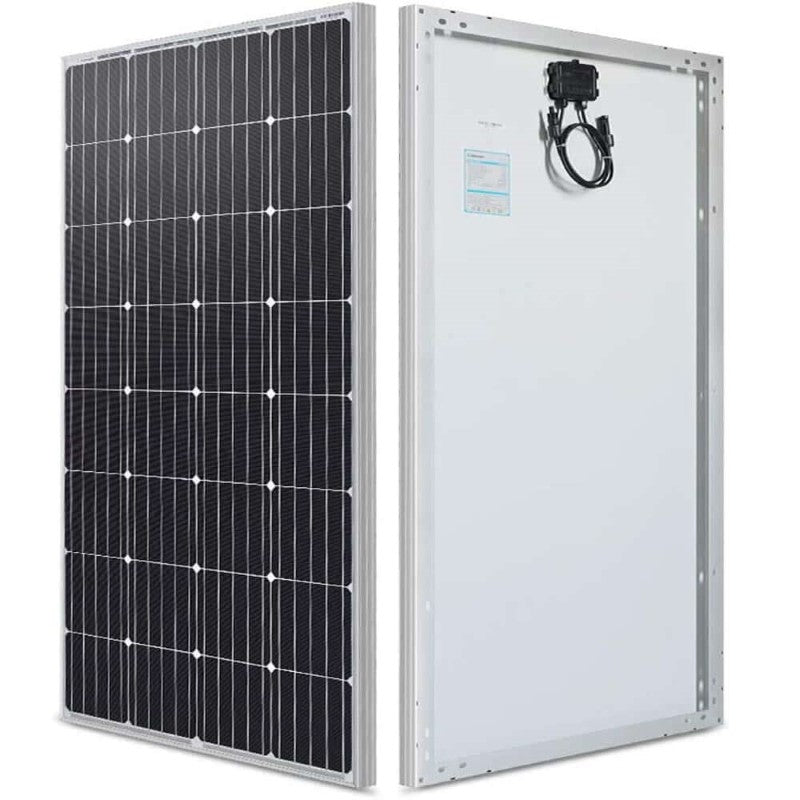

200W 36V Monocrystalline Solar Panel for House, RV, Boat, Back-Up System 200W Monocrystalline Solar Panel

Product Overview:

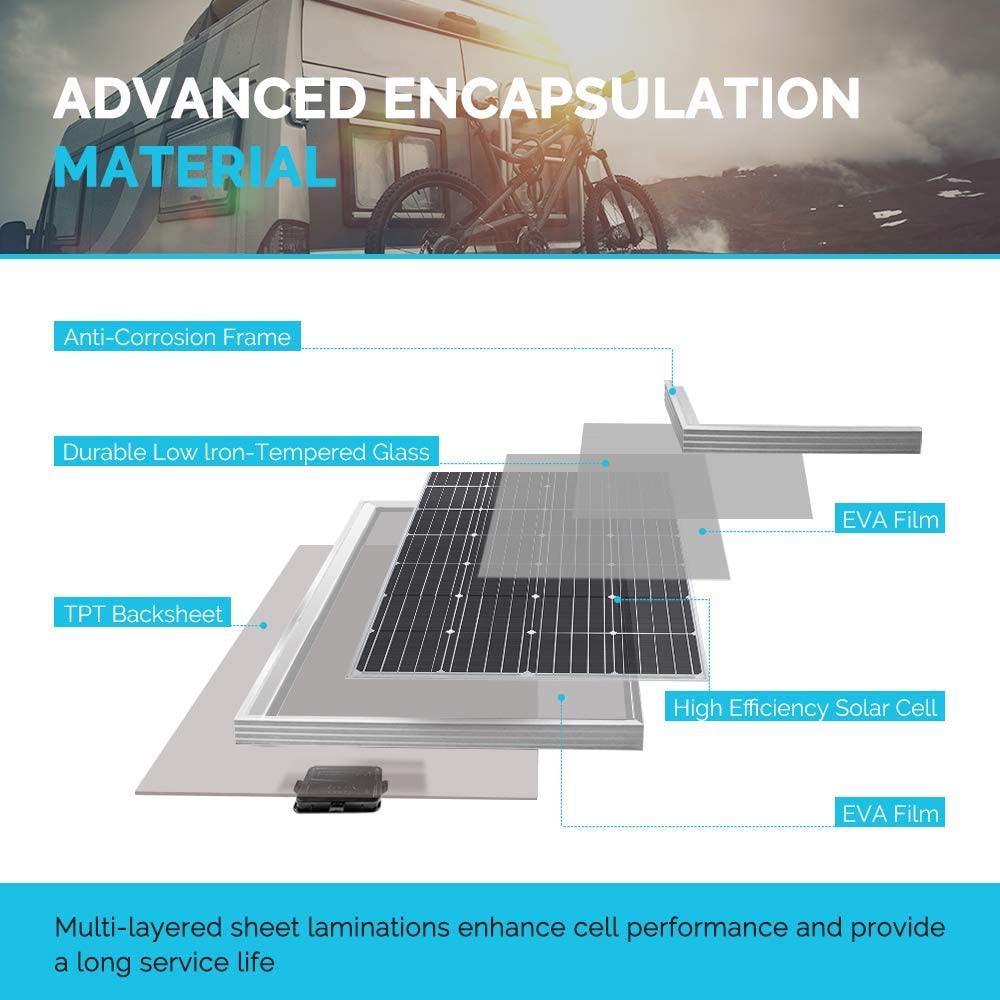

The 200W Monocrystalline Solar Panel is designed for maximum efficiency and durability, utilizing high-efficiency A-grade Trinasolar® cells. This panel is engineered with a robust aluminum alloy frame and a weather-tight junction box, making it suitable for various applications, from residential solar installations to outdoor setups.

Key Features:

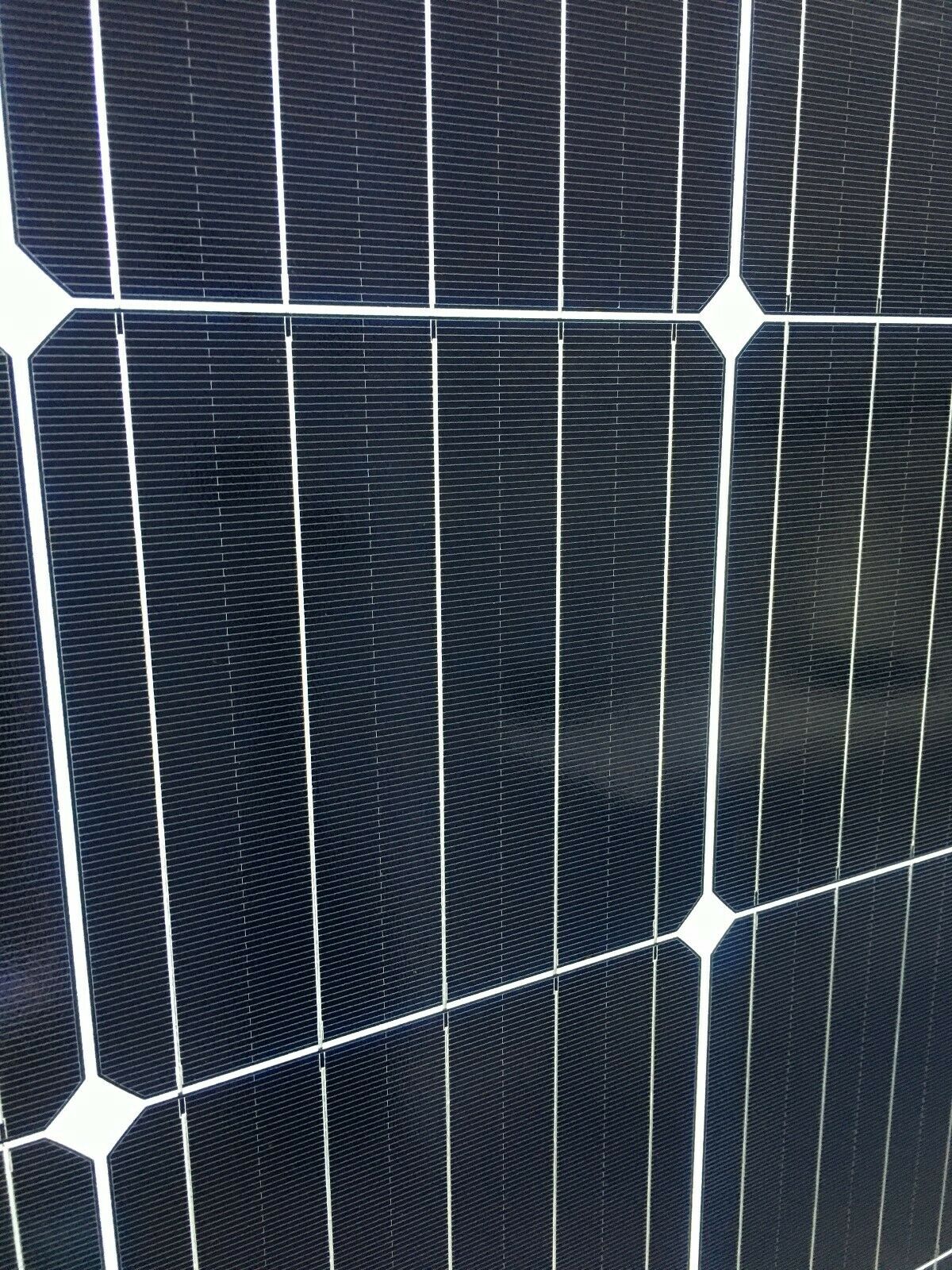

  • High Efficiency Cells: Equipped with A-grade mono-crystalline cells that provide 20.50% cell efficiency for optimal energy output.
  • Robust Construction: The panel features a strong aluminum alloy frame, ensuring long-lasting durability and resistance to environmental conditions.

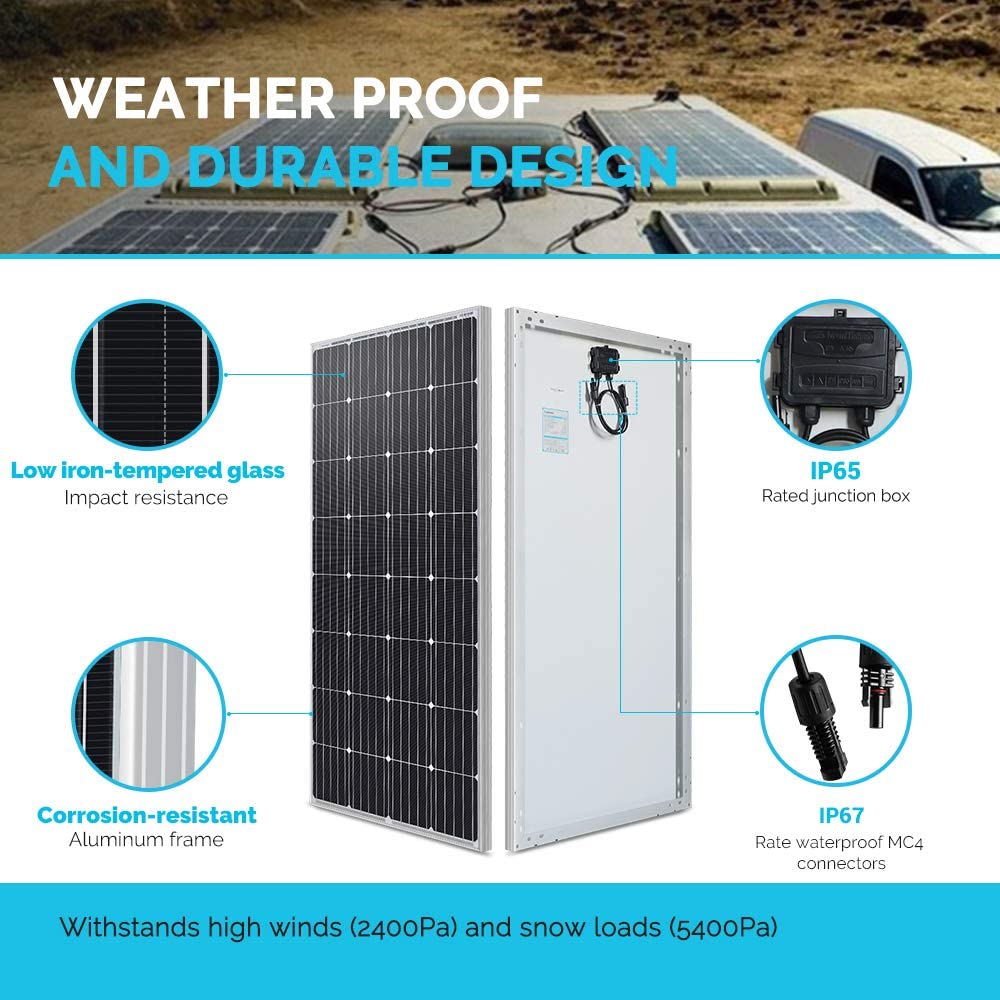

  • Weather Protection: With an IP65 rating, the junction box is sealed against moisture and dust, providing reliable performance in harsh weather.

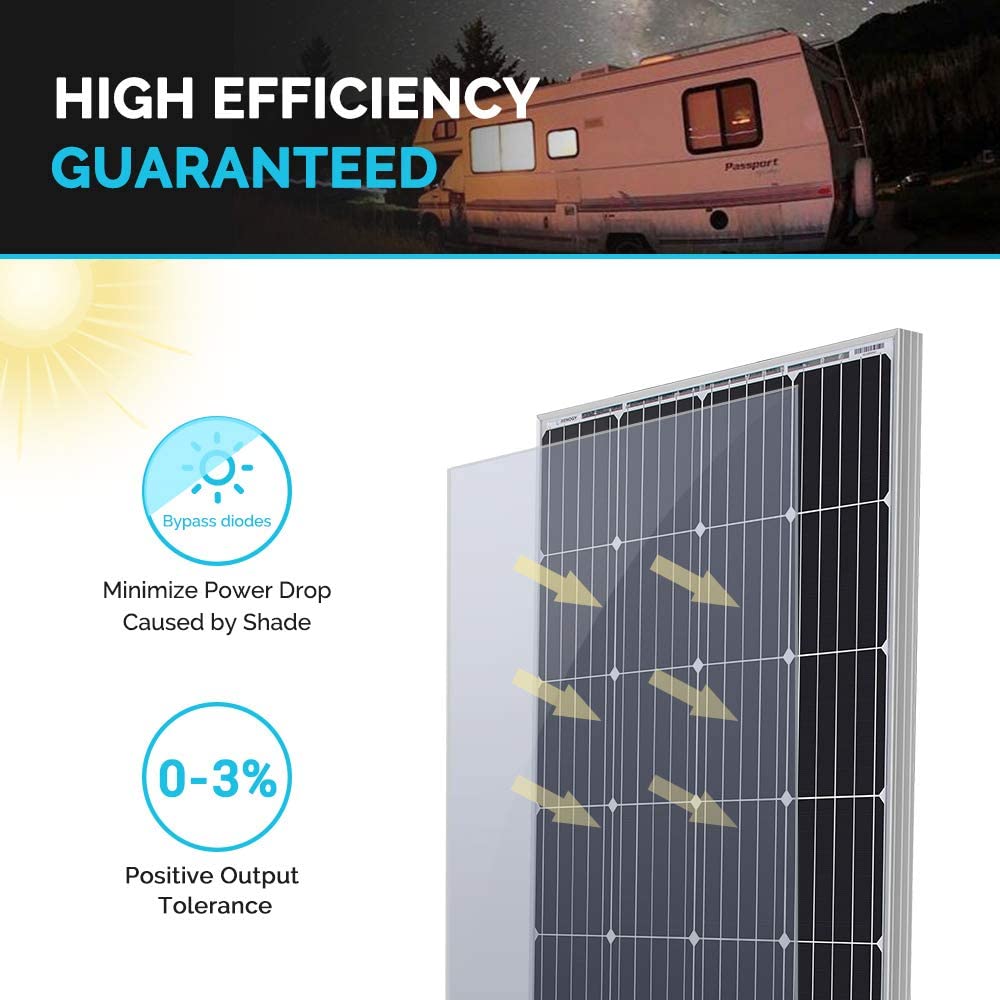

  • Bypass Diode: A built-in bypass diode offers added protection for panels connected in series during partial shading, enhancing overall performance.

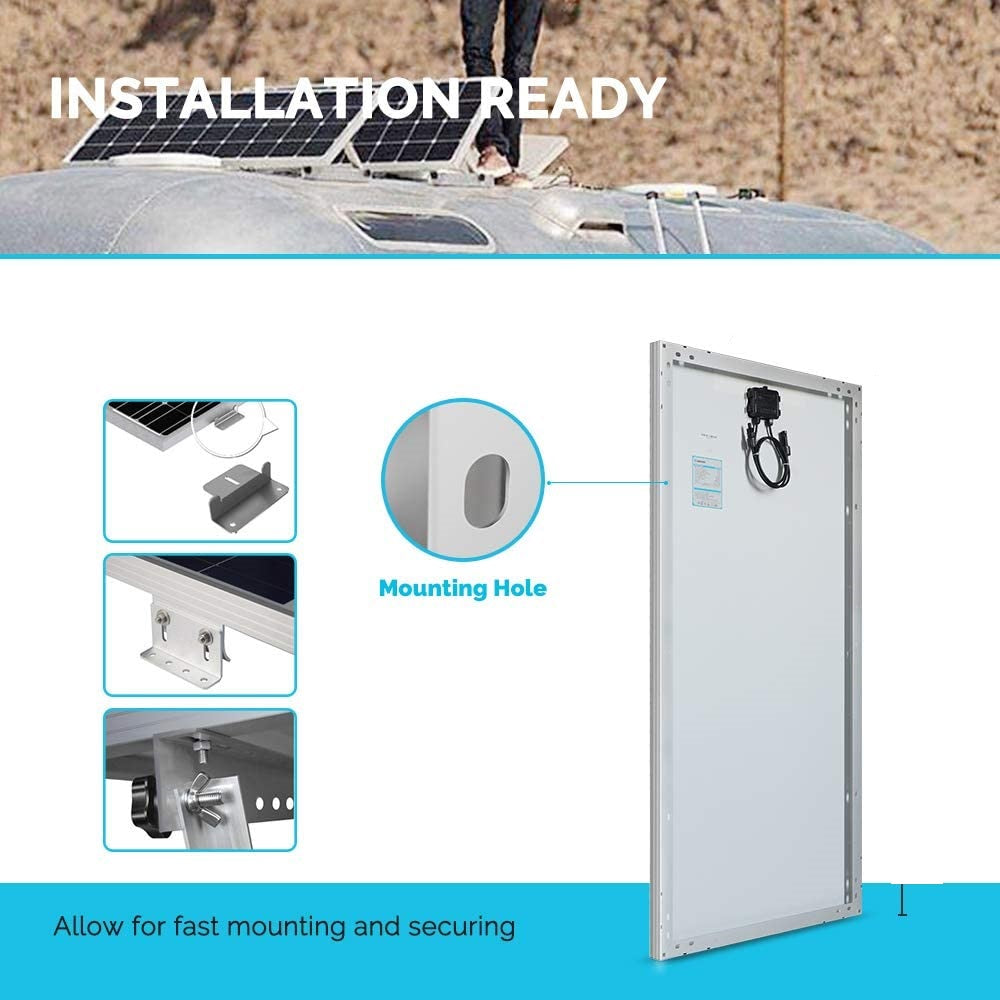

  • Easy Installation: Comes with 900mm pre-installed cables and standard MC4 connectors for quick and straightforward installation.

Specifications:

  • Max Power (Pmax): 200W ± 3%
  • Max Power Voltage (Vmp): 36V
  • Max Power Current (Imp): 5.56A
  • Open Circuit Voltage (Voc): 43.2V
  • Short Circuit Current (Isc): 6.1A
  • Max System Voltage: 1000V
  • Max Series Fuse: 10A
  • Power Tolerance: ±3%
  • Cell Type: Mono-crystalline Trinasolar®
  • Module Efficiency STC: 18.47%
  • Operating Temperature Range: -40°C to +85°C
  • Dimensions: 1590 x 820 x 35 mm
  • Weight: 13.3 kg
  • Temperature Coefficient of Pmax: -0.435%/°C
  • Temperature Coefficient of Voc: -0.35%/°C
  • Temperature Coefficient of Isc: 0.043%/°C
  • Normal Operating Cell Temperature (NOCT): 47°C ± 2°C
  • Wind Load: 2400 Pascal
  • Snow Load: 5400 Pascal
  • Warranty: 10 Years
  • Application Class: Class A
  • Fire Rating: Class C

Applications: Ideal for a variety of applications, including:

  • Residential solar energy systems
  • RVs and motorhomes
  • Boats and marine applications
  • Remote power generation
  • Off-grid solar solutions

Available Sizes: We also offer solar panels in various sizes, including 20W, 30W, 50W, 100W, 150W, 260W, 280W, and 320W. Please check our store for more options.

The 200W Monocrystalline Solar Panel provides a reliable and efficient energy solution, backed by a 10-year warranty for peace of mind. Upgrade your solar energy system today!
