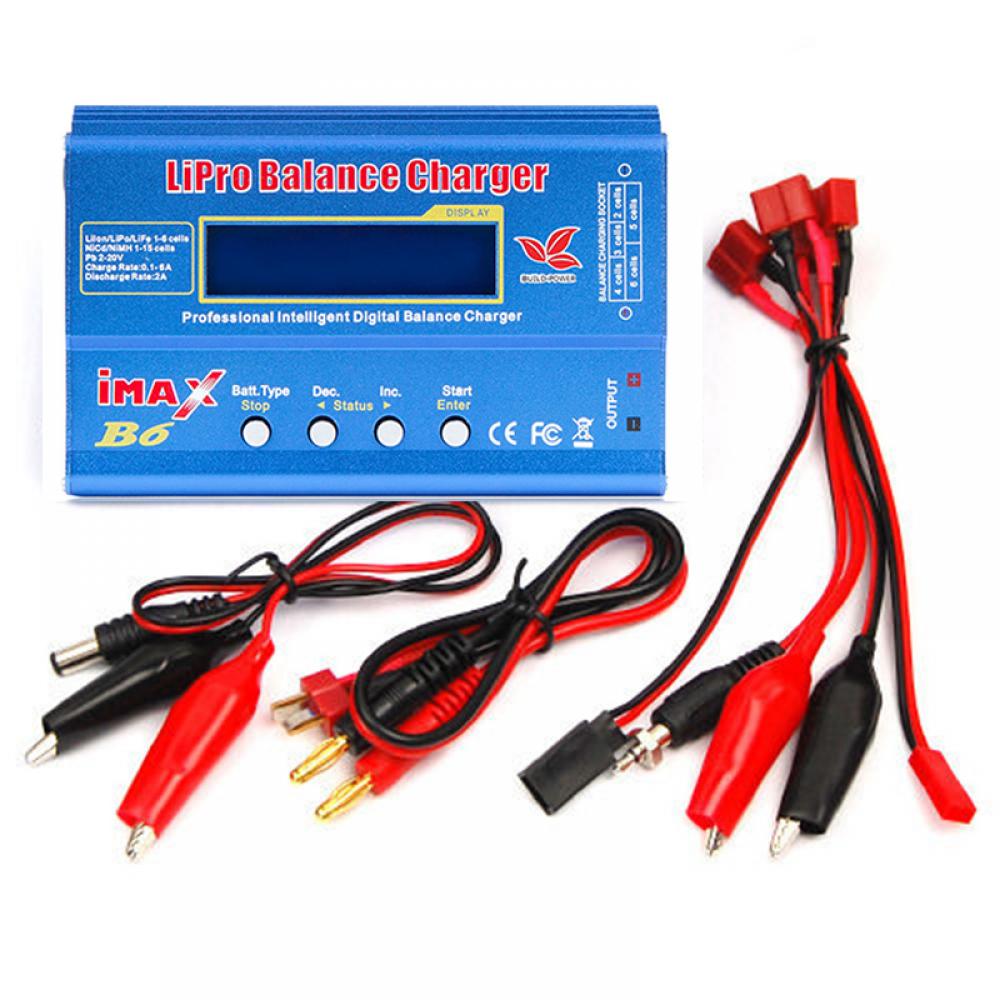

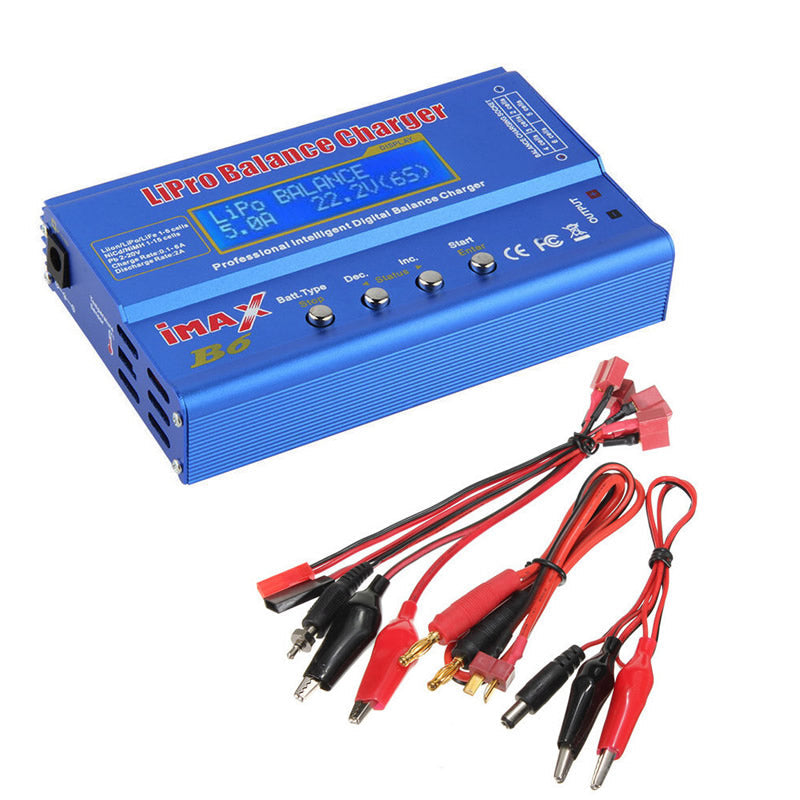

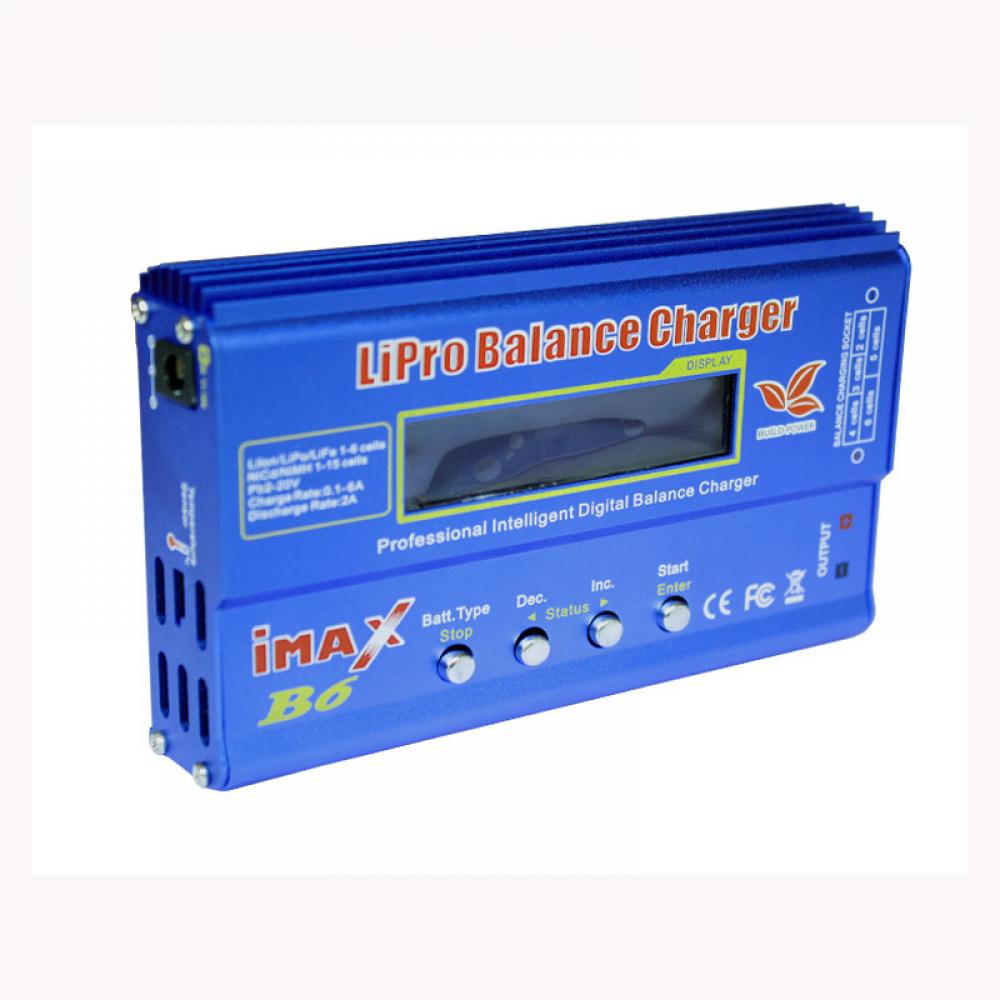

iMAX B6 LCD Screen Digital RC Lipo NiMh Battery Balance Charger
iMax B6 features an AUTO function that controls charge rate during charging & discharging. Prevent overcharging which save you from any hazard. It will disconnect the circuit automatically & initiate an alarm if there is any malfunction. All the operating modes of this charger are controlled through two way communication, between the charger & the battery to achieve maximum safety. All the settings can be configured by the user
Features:
- Microprocessor controlled Delta-peak sensitivity
- Individual cell balancing Li-ion, LiPo & LiFe capable, Ni-Cd & NiMH capable
- Large range of charge currents Store function, allows safe storage current
- Data storage (Store up to 5 packs in memory)
- Time limit function
- Input voltage monitoring
- Support new generation A123 system (life) battery
Operating Voltage:
- DC 10-20V
- AC to DC Adaptor (DC 10-20V/6A)
Power:
- Max.Charge Power: 80W
- Max.Discharge Power: 10W
- Charge Current Range: 0.1~6A
- Discharge current range: 0.1-2A
- Current Drain For Balancing Li-po: 300mAH/cell
- Li-ion/Poly Cell Count: 1-6 series
- NiCd/NiMH Battery Cell Count: 1-15cell
- Pb Battery Voltage: 2~20V
- Dimensions: 133 x 87 x 33mm
Automatic charging current limit:
Set the upper limit of the charging current when charging your NiCd or NiMH batteries & will charge automatically till that value of current. This is useful for NiMH batteries of low impedance & capacity in the 'AUTO' charging mode
Package Included:
- 1 x iMAX B6 LCD Screen Digital RC Lipo NiMh Battery Balance Charger with cable
- 1 x Manual
