LiFePO4 Battery Charger DC 10-36V to 43.8V 10A 438W DC DC Converter IP65
Charge compatible lithium battery systems with this LiFePO4 Battery Charger, designed to convert DC 10-36V input into a regulated DC 43.8V output. The LiFePO4 Battery Charger delivers up to 10A charging current and 438W rated output power, making it suitable for compatible 36V nominal LiFePO4 battery systems.
The LiFePO4 Battery Charger features DC to DC buck boost conversion and synchronous rectification technology, with a claimed efficiency of up to 96%. Its compact aluminium alloy housing provides durable protection, while the IP65-rated construction offers resistance to dust and water jets.
Equipped with intelligent electrical protection, the LiFePO4 Battery Charger helps protect against overcurrent, abnormal voltage conditions, short circuits and overheating. The LiFePO4 Battery Charger also includes red and green LED indicators for convenient charging status monitoring.
KEY FEATURES
43.8V 10A Output: LiFePO4 Battery Charger delivers regulated charging output for compatible battery systems.
DC 10-36V Input: Wide input voltage range for suitable DC power sources.
438W Rated Power: High-output DC charging converter.
Buck Boost Conversion: Steps input voltage up or down as required.
Up to 96% Efficiency: LiFePO4 Battery Charger uses synchronous rectification technology.
IP65 Rated Housing: Dust-tight construction resistant to water jets.
Intelligent Protection: Overcurrent, overvoltage, low voltage, short circuit and overheating protection.

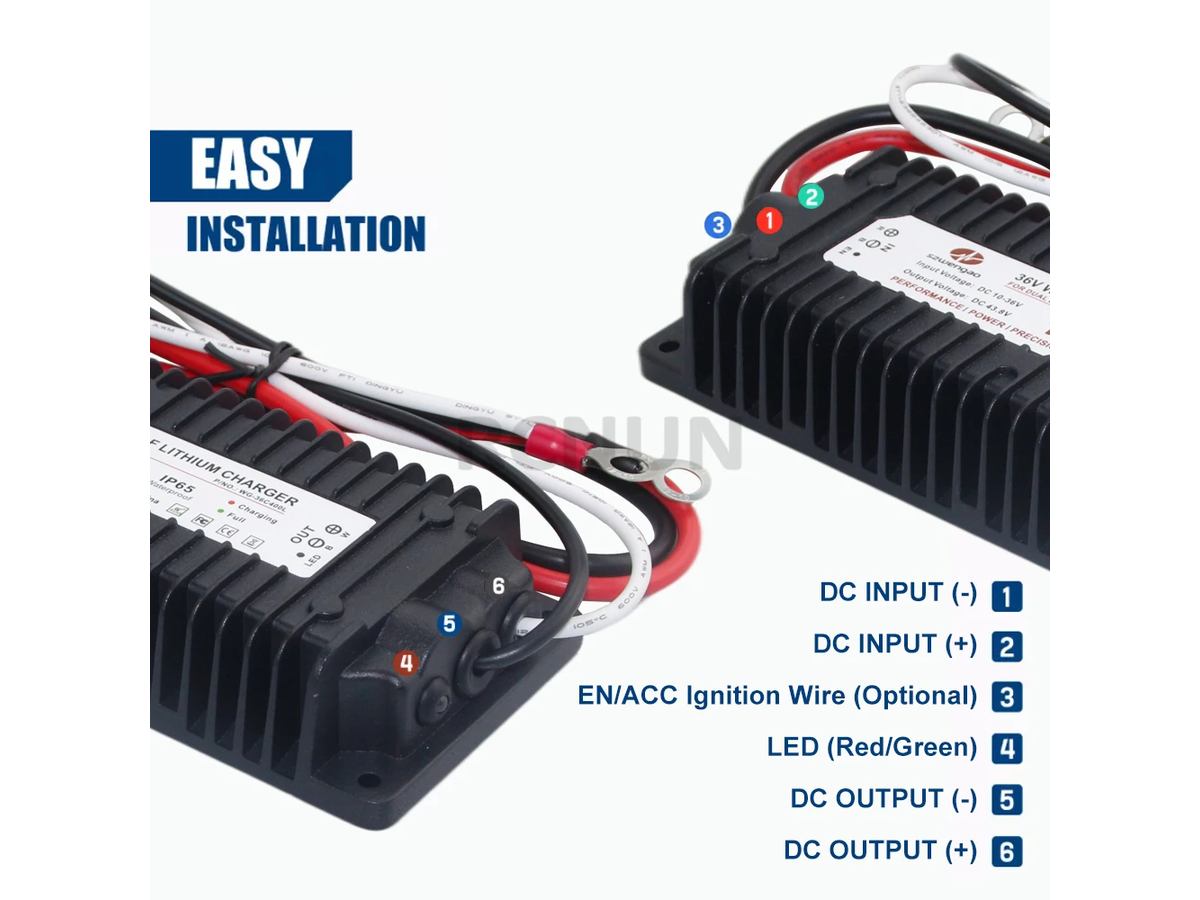

LED Charging Indicators: Red indicates charging and green indicates full.
Aluminium Alloy Housing: LiFePO4 Battery Charger features compact and durable construction.
WHERE CAN YOU USE IT?
LiFePO4 Battery Systems: LiFePO4 Battery Charger is designed for compatible 36V nominal battery configurations.
Off-Grid Power Setups: Suitable for compatible DC battery charging installations.
DC Power Projects: Converts suitable 10-36V DC input into regulated 43.8V output.
Battery Charging Installations: LiFePO4 Battery Charger supports systems requiring up to 10A output.
Custom Power Systems: Suitable where battery chemistry, charging voltage and electrical requirements match.
SPECIFICATIONS
Product Type: LiFePO4 Battery Charger
Input Voltage: DC 10-36V
Output Voltage: DC 43.8V
Output Current: 10A
Rated Output Power: 438W
Conversion Type: DC to DC Buck Boost
Output Type: Single
Conversion Efficiency: Up to 96%
Protection Rating: IP65
Housing Material: Aluminium Alloy
Operating Temperature: -30°C to +80°C
Protection: Overcurrent, Overvoltage, Low Voltage, Short Circuit, Overtemperature
LED Indicators: Red Charging, Green Full
Product Dimensions: 20 X 7.7 X 3 cm
Product Weight: Approximately 1.1 kg
ACC Control Wire: Not Included
PACKAGE INCLUDES
1 X LiFePO4 Battery Charger 43.8V 10A Without ACC Wire
