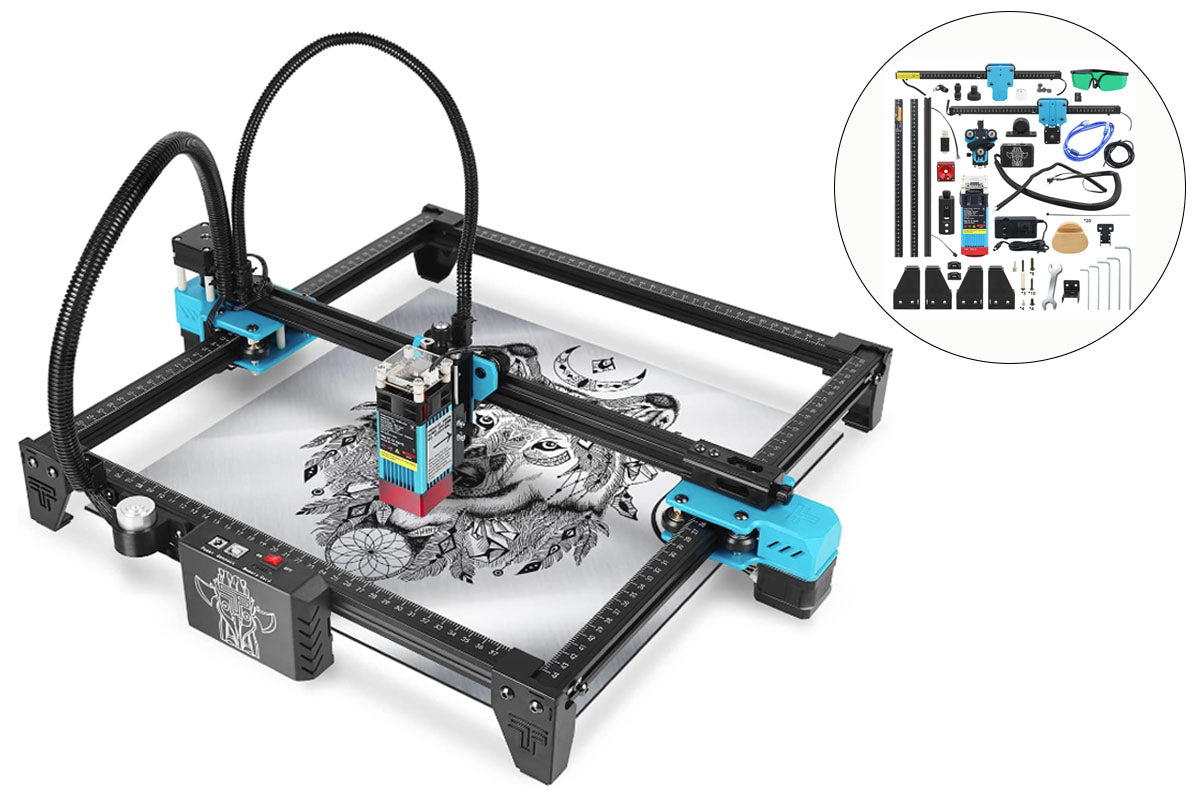

TTS-55 40W Laser Engraver Machine Laser Cutter Laser Cutting Engraving Tool for Wood Metal Aluminum Glass Leather
-Laser power: 5.5W, Machine output power: 40W.

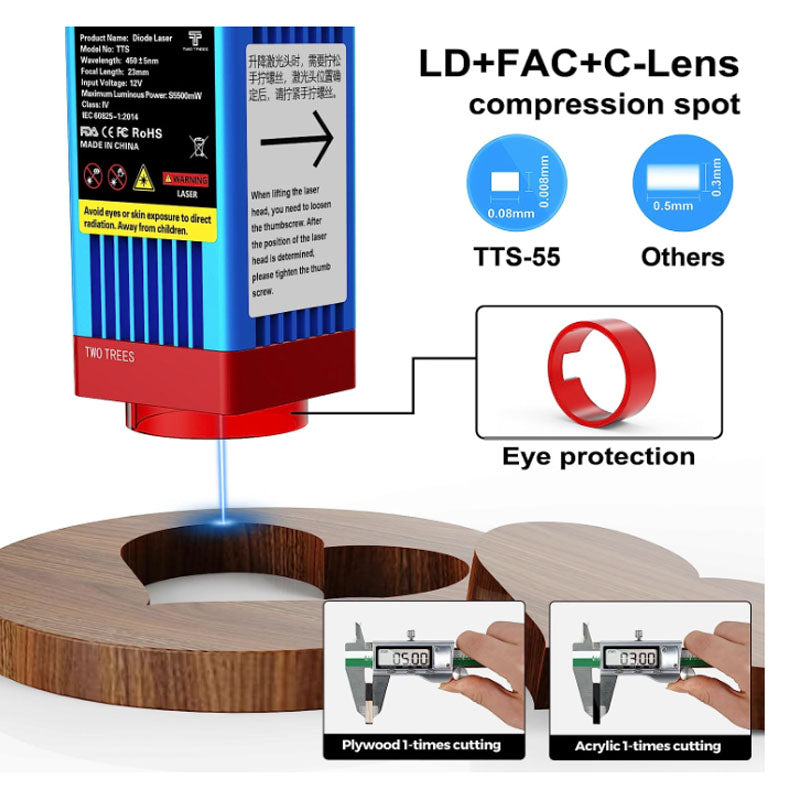

Advanced Laser Technology: TTS-55 laser module uses the latest LD+FAC+C-Lens compression spot technology, fixed focus, focal length is only 23mm, compared with other long focus lasers, short focus laser has stronger engraving and cutting ability. Engraving accuracy: 0.1mm.
-32-bit Motherboard: The motherboard adopts 32-BIT dual-core MCU, which has a faster processing speed, and the engraving speed can reach 10000mm/min. Laser can engrave online and TF card offline engraving. Due to the built-in WIFI module, you can also use the mobile phone App and computer WEB for engraving.
-Capability of engraving and cutting: TTS-55 laser can engrave wood, plastic, paper, leather, bamboo, sponge paper, alumina, stainless steel, chevron board, acrylic, glass, etc. The laser can cut up to 5mm plywood, 3mm acrylic board , 3mm carton, 0.7mm leather and so on. Working Area: 300x300mm.
-Perfectly compatible system:Use LaserGRBL or LightBurn (It's the most popular paid carving software in the world, very easy to use). Supports Windows XP, 7, 8, 10(Use LaserGRBL), Mac OS, and Linux(Use LightBurn).
Specifications:
-Material:Aluminium+plastic parts
-Input Power:40W
-Laser Power:5.5W
-Laser Wave length:445+-5nm
-Engraving speed:10000mm/min
-spot size:0.08*0.08mm
-Focal Distance:23mm
-Laser class:ClassIV
-Machine Size (LXWXH):570 x 510 x 170 mm
-File Format:Nc/.dxf/.bmp/.jpg/.png, etc
-Engraving Accuracy: 0.1m
-Carving Materials: Wood, Plastic, Paper, Leather, Sponge Paper, Alumina, Etc
Remark:
-Read the user manual before use.
-Wear laser goggles during operation and avoid touching the laser directly with your eyes and skin!
-Do not engrave the mirror objects or metals with strong specular reflectivity, which may cause damage to the operator or burn the laser.
