H30-R1 Inline Heater 3KW - Whirlpool Bathtub SPA Pool

$137.19 $157.77 -14% OFF

H30-R1 Inline Heater 3KW - Whirlpool Bathtub SPA Pool

$137.19 $157.77 -14% OFF
LIMITED TIME OFFER 00
days
00
hours
00
minutes
00
seconds

The price of this item will revert back to $157.77 at the end of this countdown.

0 LEFT IN STOCK
Quantity
In Stock
free shipping
Product description

In Line Flow Water Heater by LX 3kw Electric spa heater for bathtub & hot tub spa pool

Application of the pump:
- This heater should be used for a whirlpool bath, hot tub, spa pool, hot spring, Hydromassage bathtub and swimming pools. It is easy to install and easy to operate.
- The heater should be connected into the water circulation system within the unit that its being installed into. Make sure there is connection is tight and that there isn't any water leaking from this connection. Once the connection has been made, before turning the unit on, make sure there is water in the hot tub, swimming pool etc.
- The temperature of the water will be controlled automatically. If you need to adjust the water temperature you can do this with the control panel which is on your hot tub (if it has this feature).
- The heaters' power cable should be grounded and the main power should have a leakage protector installed.
- The heater cable should be fixed in a dry place to avoid electrical leakage.
- 3KW heaters does not come with prewired plug and need separate wiring by a qualified electrician.
- This inline heater fully certified to be used in NZ and Made by company called LX.

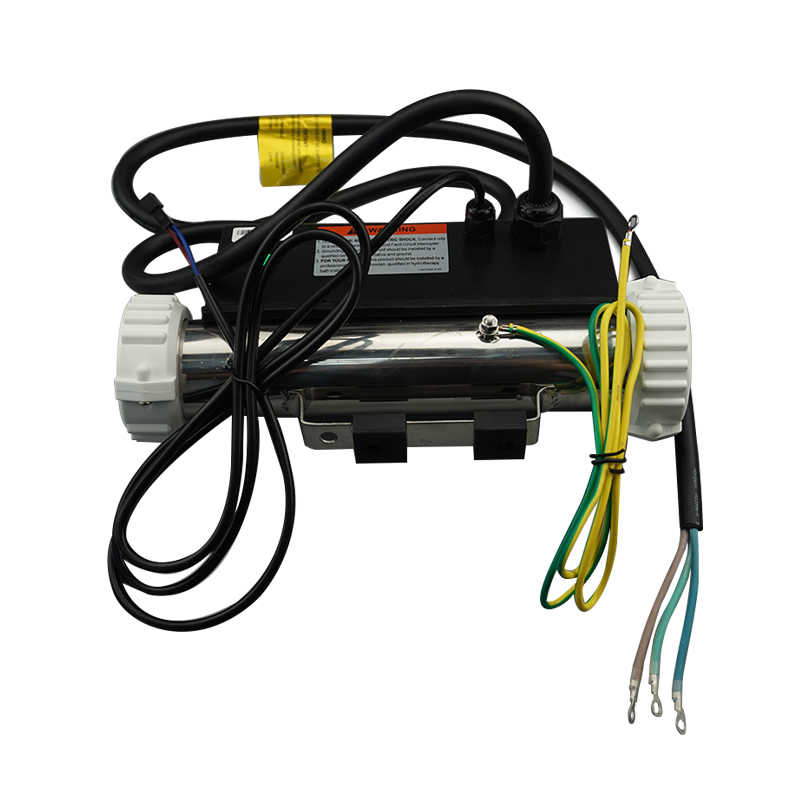

- Installation diagram of the pump is shown in the photos
- Max temperature 50C (If temperature exceeds 60C it will reset automatically.


Inline Heater Specification:
Voltage: AC220 - 230VOLTS
Model: SPH30R1
Power: 3.0KW 13.6amps
Frequency: 50HZ
Inlet & Outlet: 50mm including 2 free unions
Cable length: Approx 1 Meter
Inline Heater is suitable for tup size around 1300 Liter
Heater Weight: 1.9Kg
Medium temperature:5~+50℃
Environmental temperature:≤50℃
Max.working pressure:0.3MPa
UL1030 safety switch or water flow switch prevent dry heating.
Equip with 0-45℃ adjustable thermostat and 60℃ over-heating controller.


Inlet/outlet size: 50mm
Pump comes with 2 Unions 50mm size
