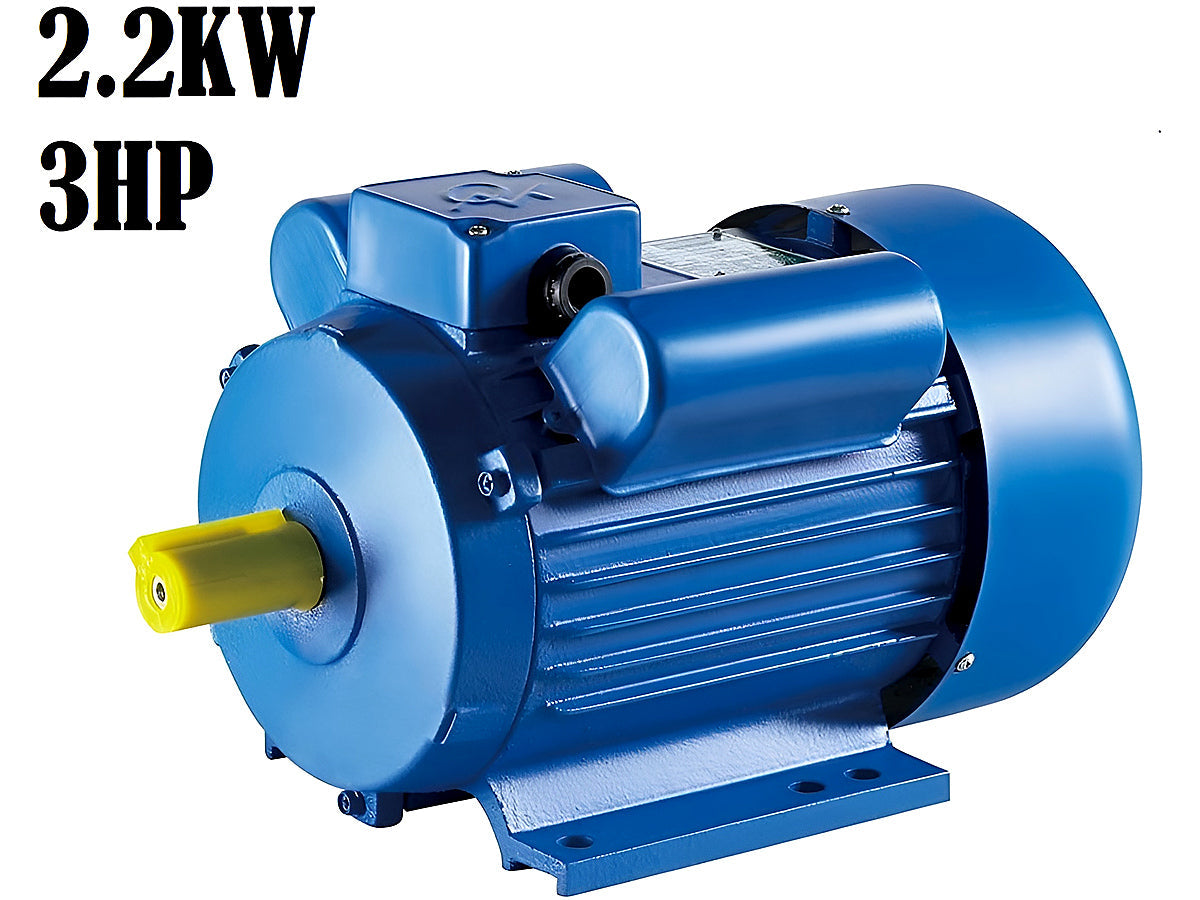

Electric Motor 3HP Single Phase 1400RPM

$209.90 $271.90 -23% OFF

Electric Motor 3HP Single Phase 1400RPM

$209.90 $271.90 -23% OFF
0 LEFT IN STOCK
Quantity
In Stock
fast shipping
Payment Options
Product description

Single Phase Electric Motor 3HP 2.2kW 230V, 1400rpm, Dual Capacitor, Cast Iron Housing

A heavy-duty single-phase motor with a dual-capacitor (capacitor start, capacitor run) design. It delivers strong starting torque from a standard 230V supply, which suits workshops, farms and sites without three-phase power.

Specifications

  • Power: 2.2kW (3.0HP)
  • Voltage / Frequency: 230V / 50Hz
  • Rated Current: 13.5A
  • Speed: 1400rpm
  • Starting Capacitor: 200µF / 230V
  • Protection Class: IP44
  • Insulation Class: B
  • Housing: Cast iron

Dimensions

  • Shaft Diameter: 24mm
  • Shaft Length: 50mm
  • Keyway Width: 8mm
  • Baseplate: 152mm W x 174mm L
  • Mounting Holes: 100–125mm front to rear, 140mm across
  • Overall Body Size (excluding shaft): 295mm L x 200mm W x 225mm H

Applications
Air compressors, water pumps, fans, blowers and small machinery where only single-phase power is available.
