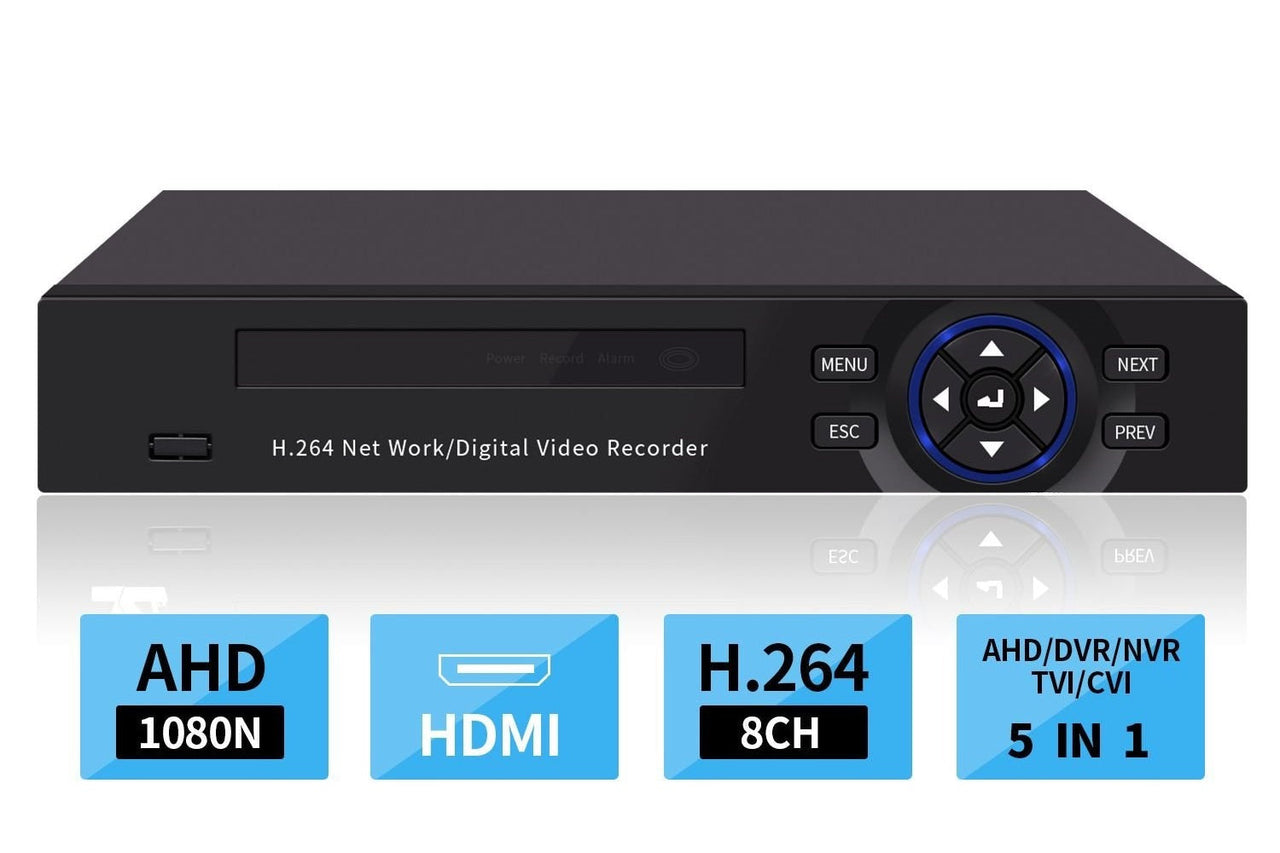

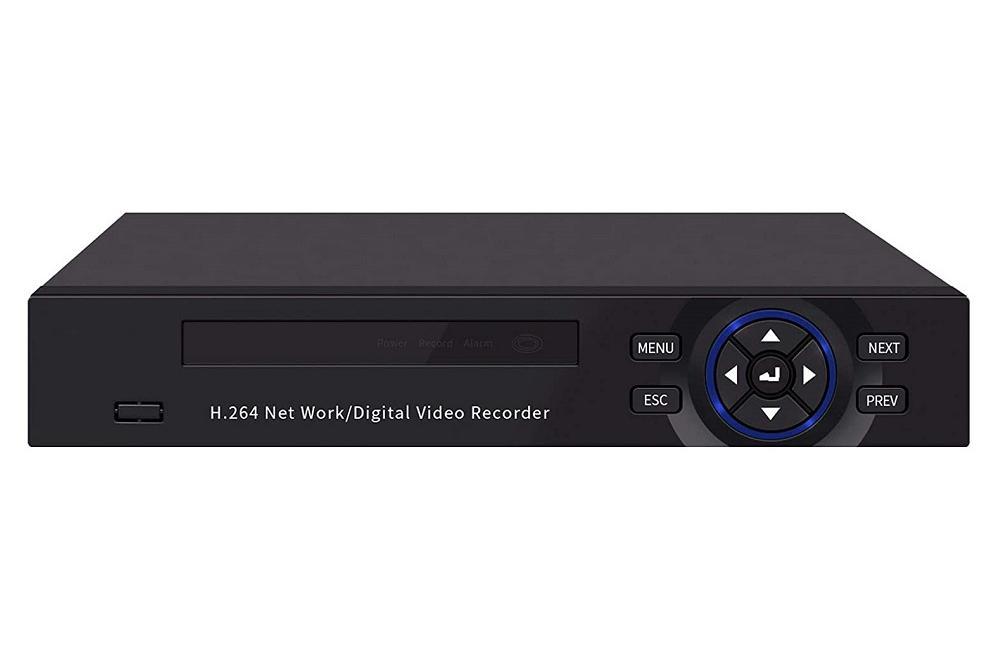

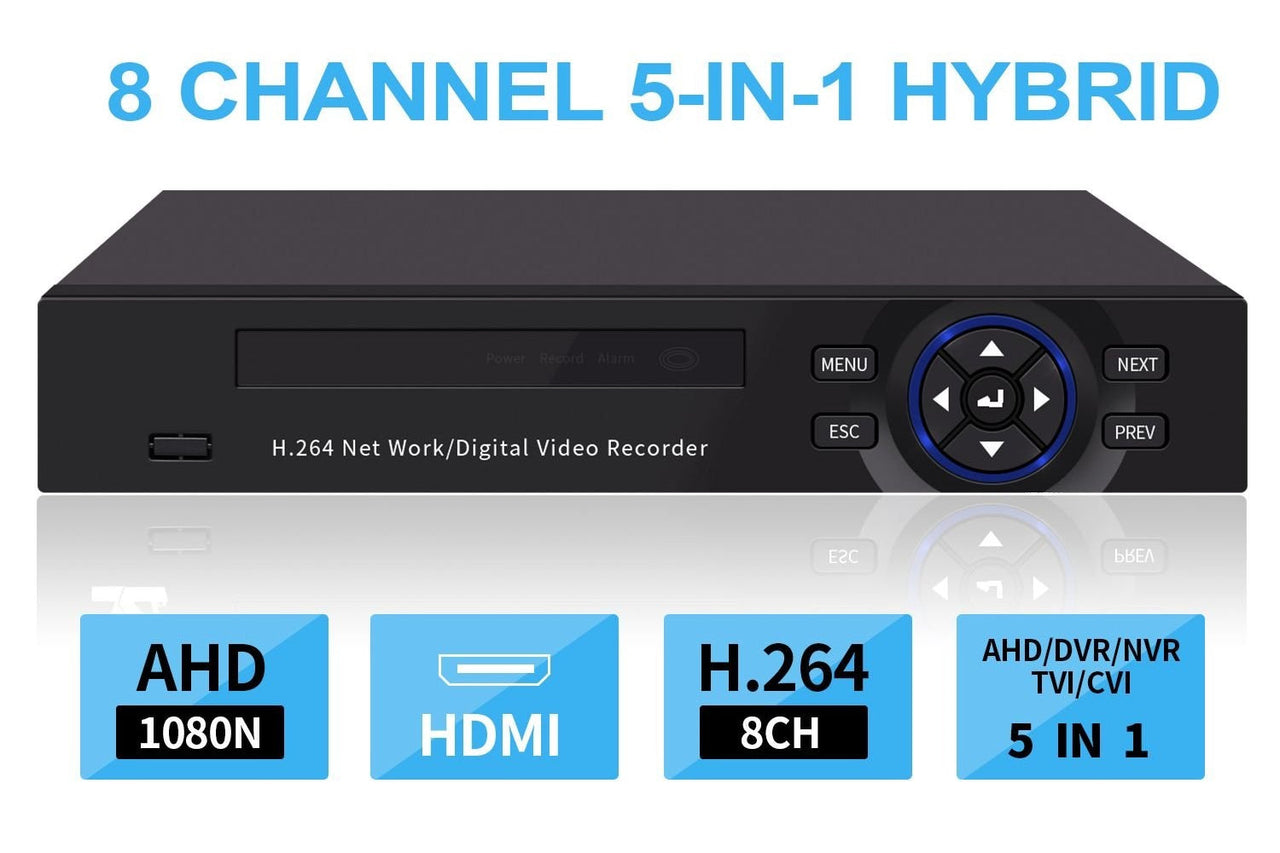

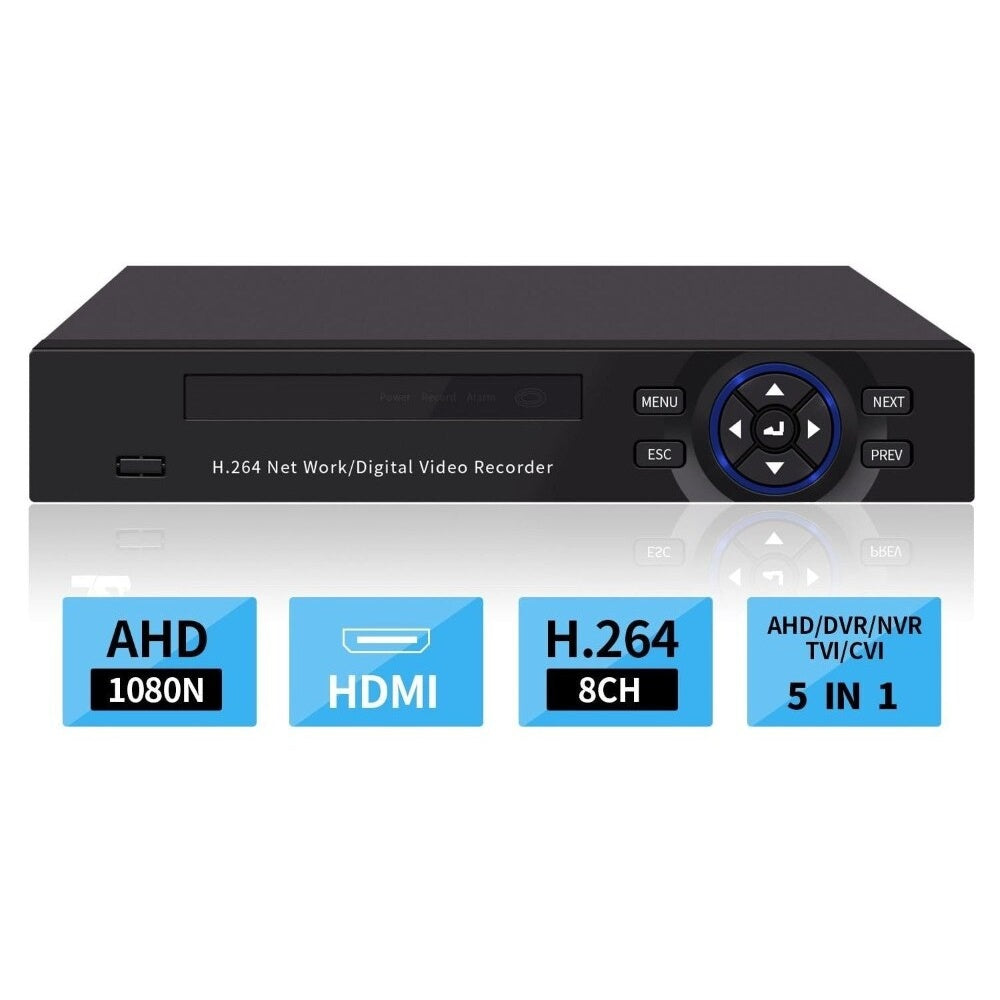

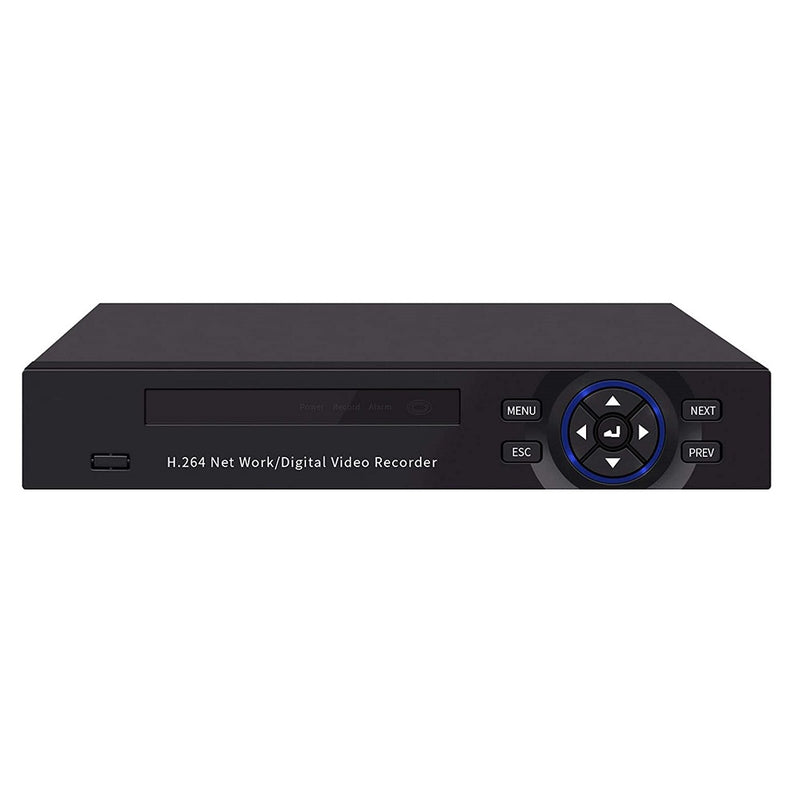

8ch 1080N 5-in-1 AHD DVR (1080P NVR+1080N AHD+960H Analog +TVI+CVI) CCTV 8 Channel Standalone DVR Quick QR Code Scan w/Easy Remote View Home Security Surveillance Camera System
Multi-input modes with 5-in-1 hybrid Standalone AHD DVR

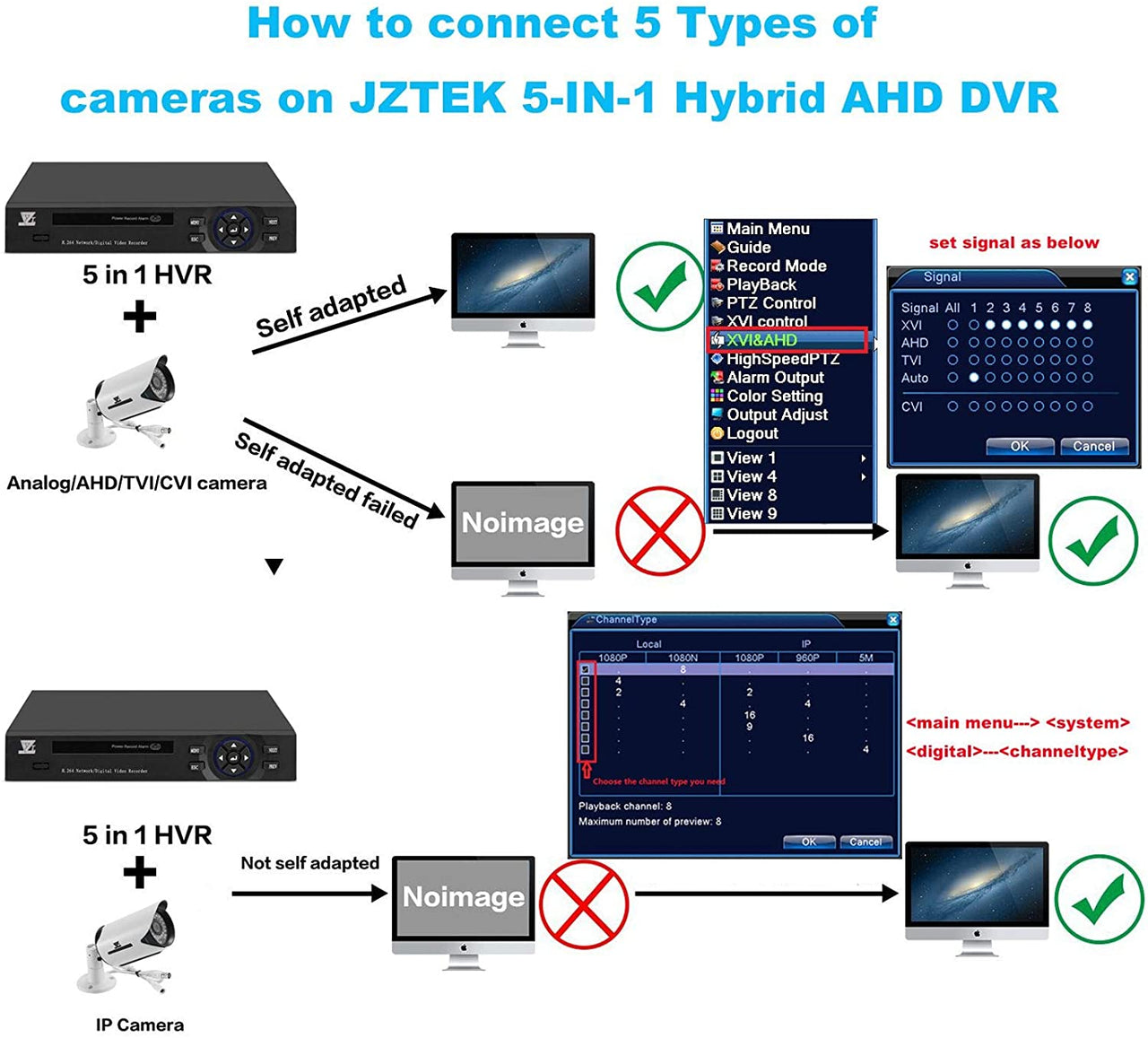

5-in-1 1080P Lite 8 Channel hybrid Security Standalone DVR, supports CVBS/AHD/TVI/CVI/ONVIF IP camera. Please confirm the camera compatibility before you hook up to our DVR.
DVR Specification
Record Resolution: Full 1080N/720P/960H/D1.
Menu Display: 1/4/8/9 Screen.
Signal System: PAL/NTSC.
Frame Rate: 1-25fps (PAL), 1-30fps (NTSC).
Outputs: Support HDMI/VGA synchronously outputs.
HDD: Support 1 SATA port,1HDD of 3TB.
USB:2*2.0 port.
ONVIF: Support.
Video Input/Output: BNC 8/VGA&HDMI..
Audio Input/Output: RCA 4/RCA 1 .
Browsers: IE, Safari, Chrome, Firefox, etc.
Backup: Network/USB/HDD.
Recoding Mode: Manual, Timing, Alarm, Motion Detection.
OSD Language: English, German, French, Spanish, Italian, Japanese, Portuguese, Russian, etc.
Network Protocol: ONVIF, HTTP, DHCP, PPPOE, DDNS, SMTP, FTP, RTSP.
Multiple Viewing Options: view from a Windows PC/Mac book/Monitor or Smart phones via Free APP.
Easy P2P Setup with QR Code Scan

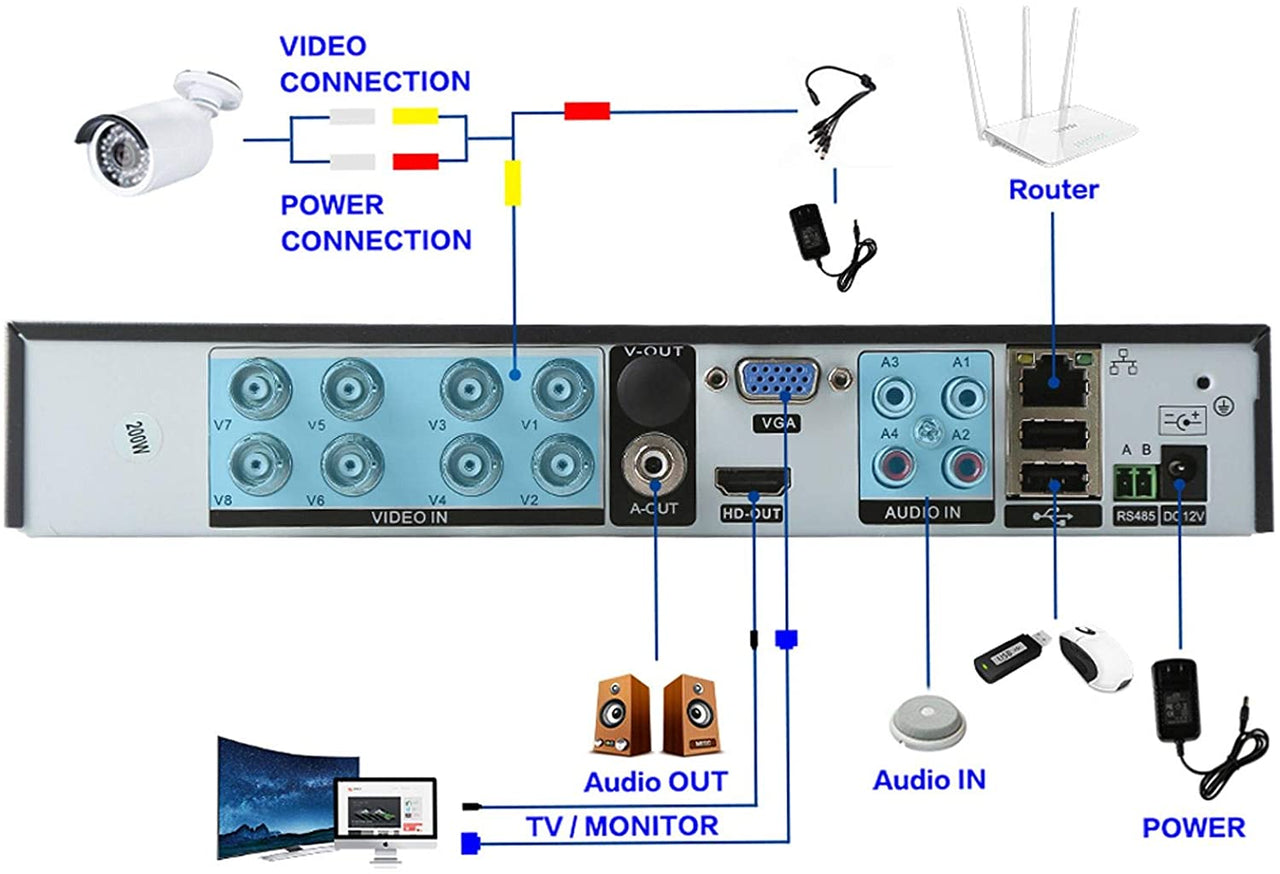

Step 1:Connect DVR to camera and a Monitor.
Step 2:Connect DVR to internet for remote monitoring.
Step 3:Download free APP XMEYE in APP Store or Google Play.
Step 4:Scan QR code to enjoy live viewing.(Right click DVR menu, find "Guide", then click "next", it will show you QR Code scan.)
Package Include:
1 x 8CH 1080N AHD DVR(No HDD)
1 x DC12V/2A Adapter
1 x Mouse
1 x Remote Control
1 x User Manual
