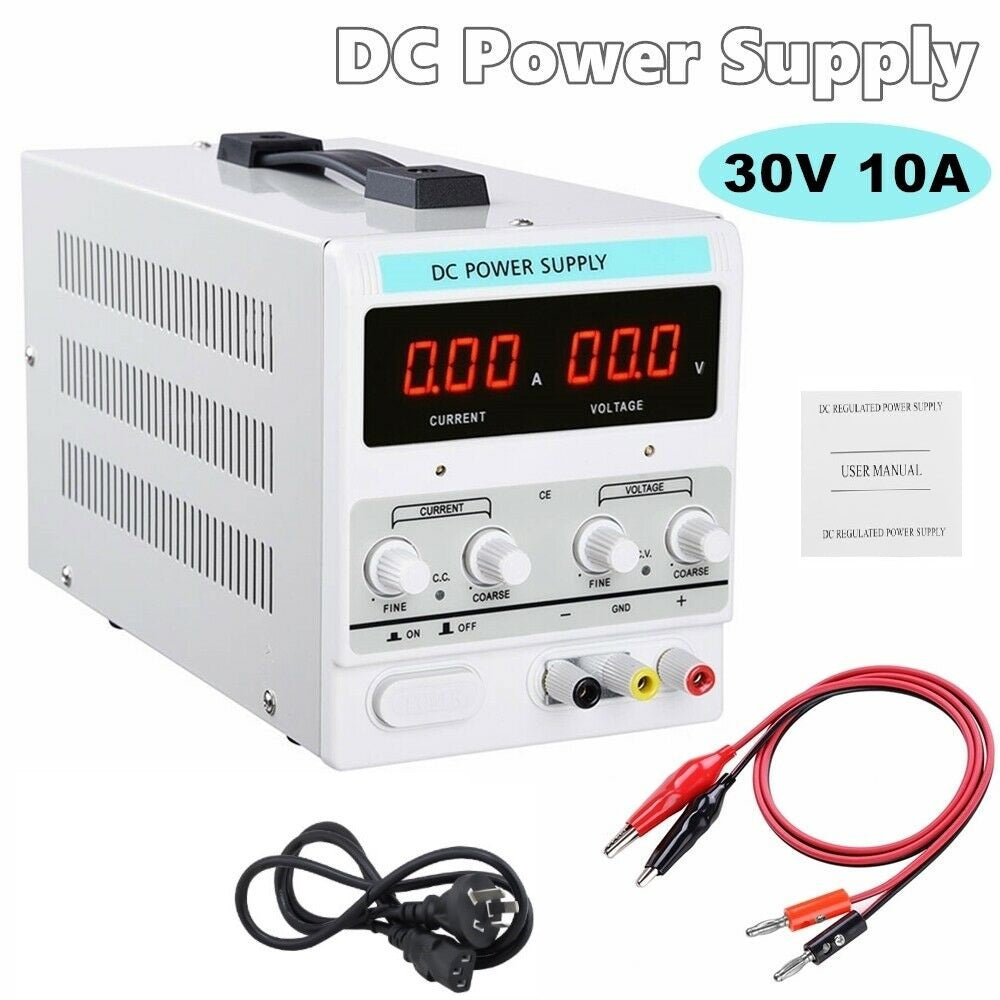

30V 10A DC Power Supply Precision

30V 10A DC Power Supply Precision Variable Digital Adjustable Lab Grade

30V 10A DC Power Supply Precision Variable Digital Adjustable Lab Grade

This precision variable DC power supply features dual LED three digital tube display and offers constant voltage and constant current operation modes (C.C and C.V. automatic conversion). It comes with multiple protections including over voltage (OVP), open circuit (OCP), and over temperature (OTP). The safe circuit design and high-quality components ensure reliable 30V 10A DC Power Supply Precision performance even under full load for extended periods.

Features:

• Dual LED Three Digital Tube Display
• Constant voltage and constant current operation mode (C.C and C.V. automatic conversion)
• Multiple protections: over voltage (OVP), open circuit (OCP), over temperature (OTP)
• Safe circuit design, high quality key components adopted
• Intelligent temperature control fan adjusts the speed according to the load situation
• PWM switching voltage stabilizer, MOS linear adjustment mode
• Durable steel case
• Perfect for product testing aging, battery industry, inverter, LED manufacturing industry, and other applications requiring DC regulated power supply

Specifications:

• Input voltage: 230V AC, 10% 60Hz
• Output voltage: DC 0-30V Continuous adjustable
• Output current: DC 0-10A Continuous adjustable
• Display resolution: voltage: 0.1V, current: 0.1A
• Display precision: 1% 1digit
• Voltage stabilization: ≤0.05% +1mV
• Current stabilization: ≤0.1% +10mA
• Load stabilization: CV=0.1% +1mV / CC=0.1% +10mA
• Ripples and noises: CV=10mV(RMS) / CC=20mA(RMS) 30V 10A DC Power Supply
• Working Temperature: -10°C ~ 40°C (14°F ~ 104°F)
• Relative Humidity: <80%
• Storage Conditions: -20°C ~ 80°C (-4°F ~ 176°F)
• Relative humidity: <80%
• Body Dimension(LxWxH): 10 1/4" x 5" x 5 7/8" (26x12.6x14.8cm)

Package Content:

• 1 x DC power supply
• 1 x Power Cord
• 1 x Cable
• 1 x User Manual
