MPPT Solar Charge Controller 20A

$135.90 $203.90 -34% OFF

MPPT Solar Charge Controller 20A

Products are usually delivered in 2-5 days.

$135.90 $203.90 -34% OFF

Additional 15% OFF at checkout

Valid Till 06-June Only

0 LEFT IN STOCK
Quantity
In Stock
free shipping
Product description

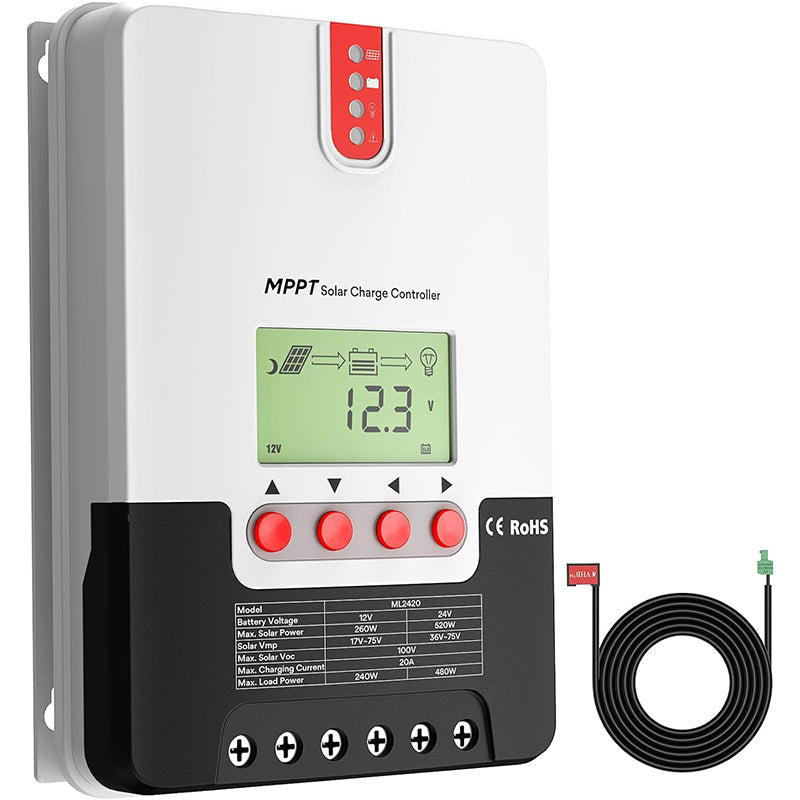

MPPT Solar Charge Controller 20A – 12V/24V Solar Battery Charging Controller ML-Series

Maximise the performance of your solar power system with this advanced MPPT Solar Charge Controller. Designed for superior energy conversion and battery management, this MPPT Solar Charge Controller delivers up to 98% conversion efficiency, helping you harvest more power from your solar panels compared to traditional PWM controllers.

Suitable for both 12V and 24V solar systems, this MPPT Solar Charge Controller intelligently tracks the maximum power point of your solar panels, ensuring optimal charging performance under varying sunlight conditions. The advanced DC-DC conversion technology improves energy utilisation and helps extend battery life.

Built with comprehensive protection features and intelligent temperature monitoring, this MPPT Solar Charge Controller provides safe, reliable operation for residential, off-grid, caravan, RV, marine, camping, and backup power applications.

Optional Bluetooth monitoring capability allows convenient system monitoring and adjustment via a smartphone application when equipped with a compatible Bluetooth module.

Features

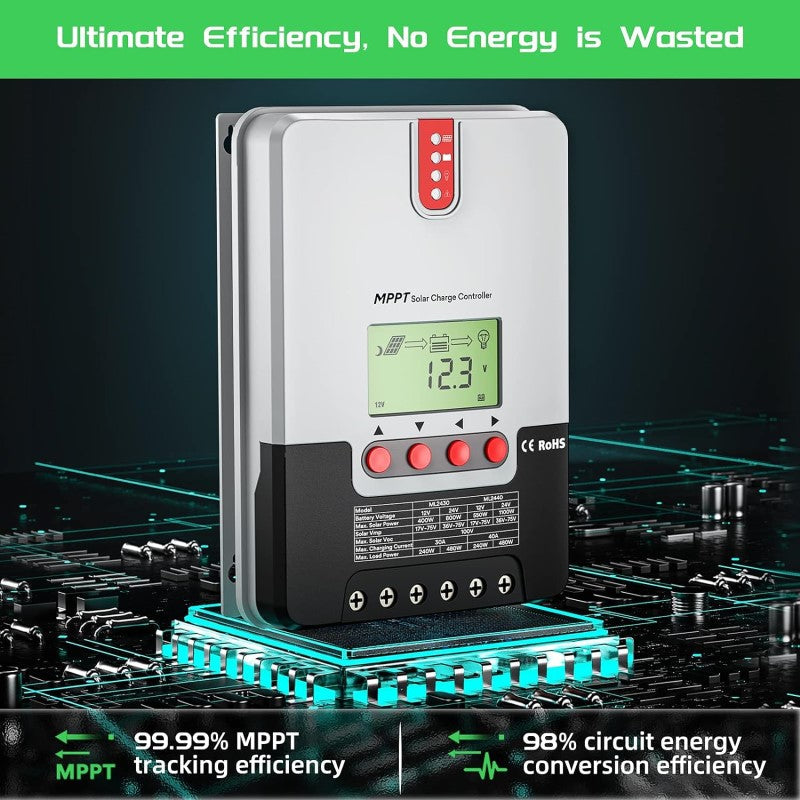

  • MPPT Solar Charge Controller with up to 98% conversion efficiency
  • Suitable for 12V and 24V solar systems
  • Advanced Maximum Power Point Tracking technology
  • Higher efficiency than traditional PWM controllers
  • Low self-power consumption
  • Customisable battery charging parameters
  • Compatible with multiple battery types
  • Built-in temperature monitoring support
  • Comprehensive battery protection functions
  • Optional Bluetooth monitoring capability
  • Reliable solar battery charging management
  • Suitable for off-grid solar systems

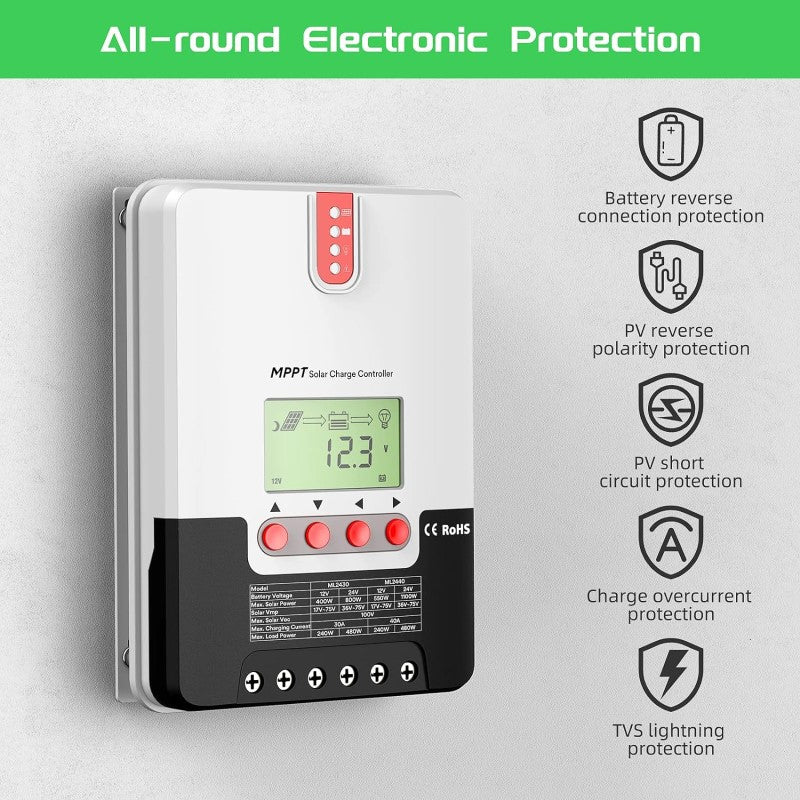

Protection Features

  • Reverse Polarity Protection
  • Overcharge Protection
  • Over-Discharge Protection
  • Short Circuit Protection
  • Overload Protection
  • Battery Temperature Monitoring

Specifications

  • Product Type: MPPT Solar Charge Controller
  • Model Series: ML-Series
  • System Voltage: 12V / 24V
  • Rated Charge Current: 20A
  • Rated Load Current: 20A
  • Maximum Solar Open Circuit Voltage (VOC): 100VDC
  • Maximum Solar Voltage (VMP): 75VDC
  • DC-DC Conversion Frequency: 40kHz
  • Solar Input Power (12V System): 260W
  • Solar Input Power (24V System): 520W
  • Operating Temperature: -35°C to +45°C

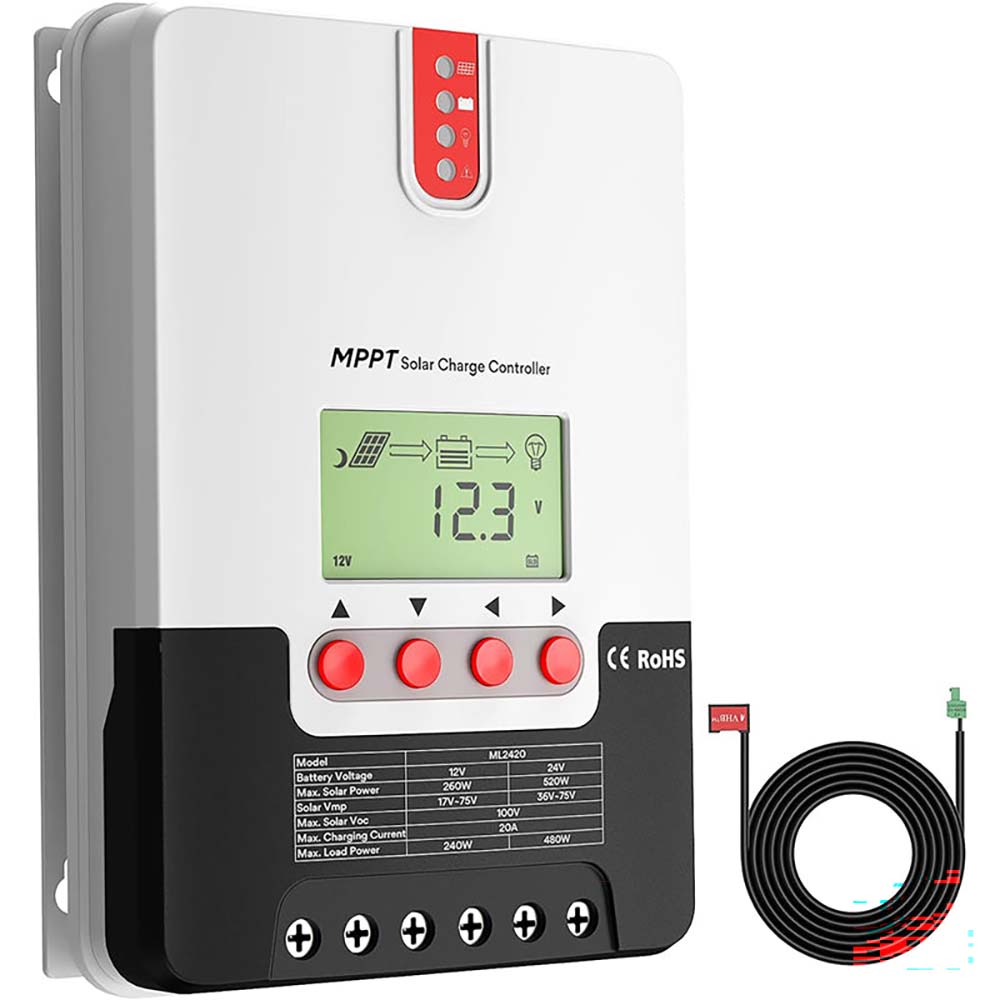

  • Protection Rating: IP32

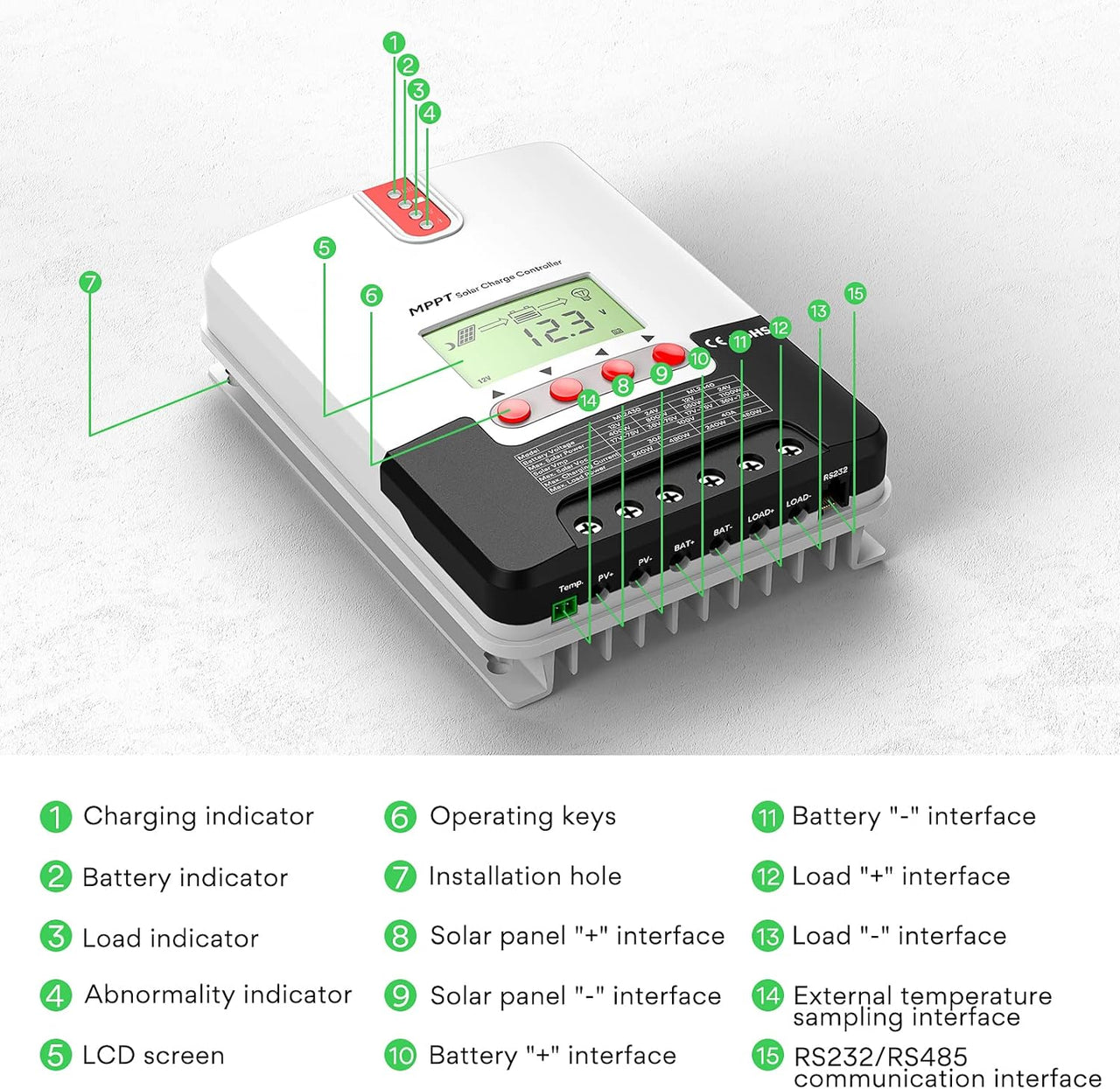

  • Communication Interface: RS232
  • Dimensions: 21 × 15.1 × 6 cm
  • Weight: 2 kg

Suitable Applications

  • Off-Grid Solar Systems
  • RV Solar Installations
  • Caravan Solar Systems
  • Marine Solar Systems
  • Camping Power Systems
  • Battery Charging Systems
  • Remote Solar Installations

Package Includes

  • 1 × MPPT Solar Charge Controller 20A
