Electrical lighting

7 Day Timer, Din Rail Mount, Ac230 V 30A Output Black

$20.90 $33.50 -38% OFF

7 Day Timer, Din Rail Mount, Ac230 V 30A Output Black

$20.90 $33.50 -38% OFF
NONE LEFT IN STOCK
fast shipping
Payment Options
Product description

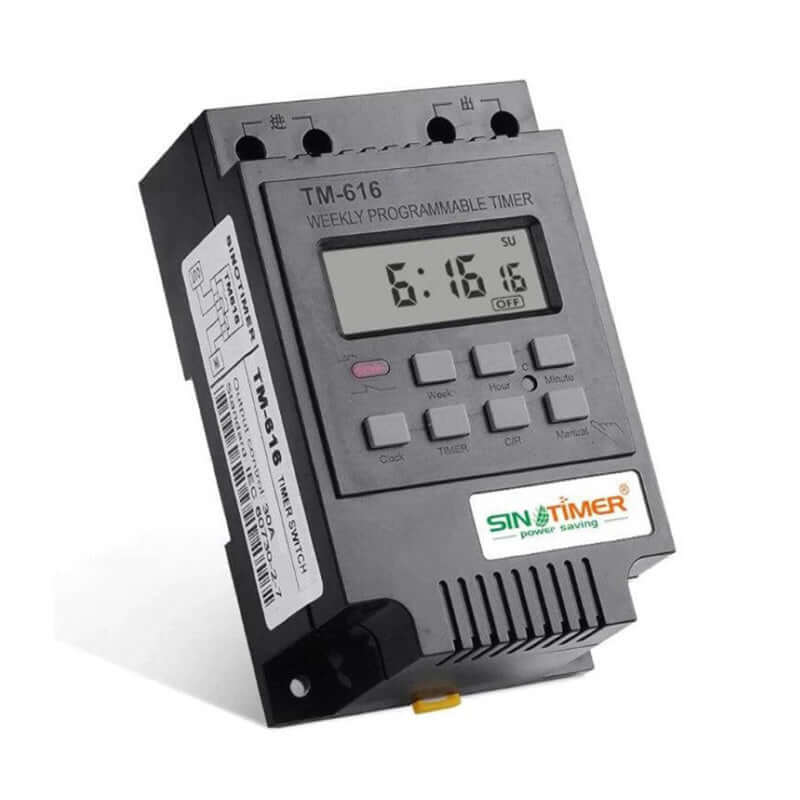

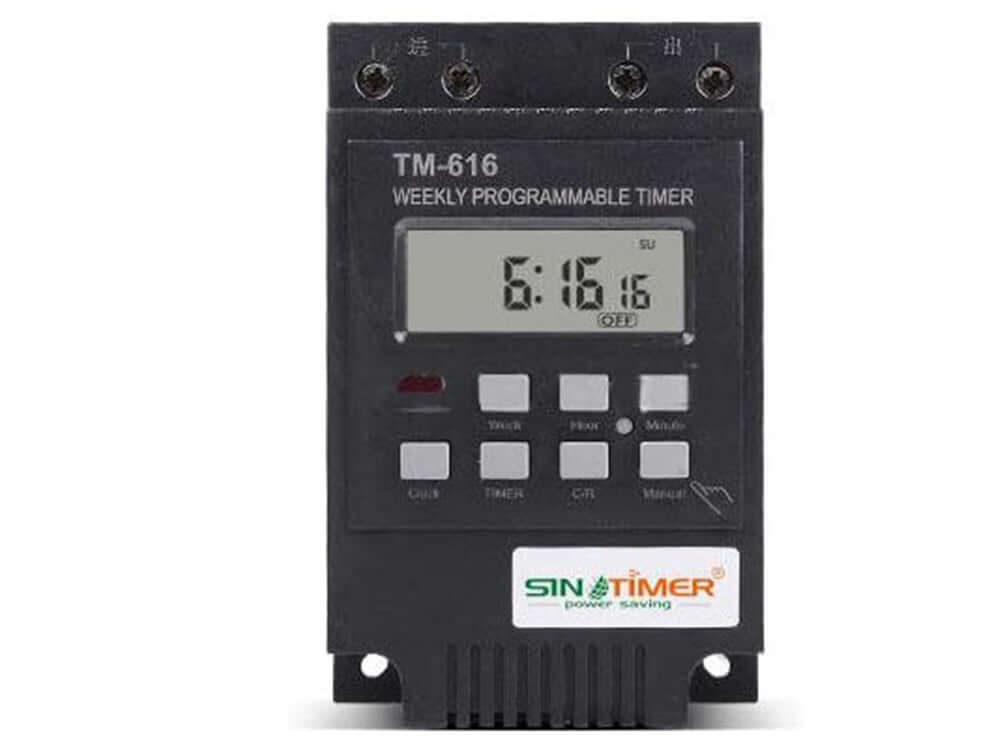

Weekly Programmable Timer - 230V 12V 30AMP TM616

Weekly Programmable Timer - 230V 12V 30AMP TM616

Digital Programmable Timer for accurate and flexible control over load management, ideal for various applications requiring precise timing operations.

Features:

  • 100% Brand New and High Quality - Ensures reliable performance.
  • Easy to Program - User-friendly interface for simple setup.
  • DIN Rail Installation - Fits easily into switchboards or can be screwed to a backboard.
  • Advanced Pre-Setting - Allows programming up to one week in advance.
  • Digital Timer Switch - With daily and weekly programs, offering 17 ON/OFF settings and a manual override function.
  • Anti-Tamper Lid - Prevents unauthorized access to settings.
  • Lithium Battery - Maintains settings and clock memory during power outages.
  • Auto Timer Error Correction - Adjusts errors up to ±30 seconds weekly.

Specifications:

  • Operating Temperature: -20°C to 55°C
  • Working Voltage: 230VAC, 50-60Hz
  • AC Switching Capacity: 30A/230V
  • Inductive Load: 30A
  • Accuracy: ±1 sec/day (20°C)
  • Power Failure Memory: 60 days
  • Min. Programmable Time: 1 minute
  • Max. Programmable Time: 168 hours
  • Controlled Power: 16(8) 250 V AC
  • Max. Programmable: 17 ON + 17 OFF
  • Max. Cable Size: 6 mm
  • Rechargeable Battery: 1.2V 40mAh
  • Size: Approx. 120mm L × 74mm W × 52mm D
  • Screw Terminals: For secure cable termination

Package Includes:

  • 1 x TM616 - 2 30A Weekly Programmable Timer Digital Time Switch
  • 1 x Programming Instructions

This Weekly Programmable Timer offers precise and automated control for your load management needs, with robust features like pre-settings, manual override, and extensive programmability, making it ideal for various applications.
