Product description

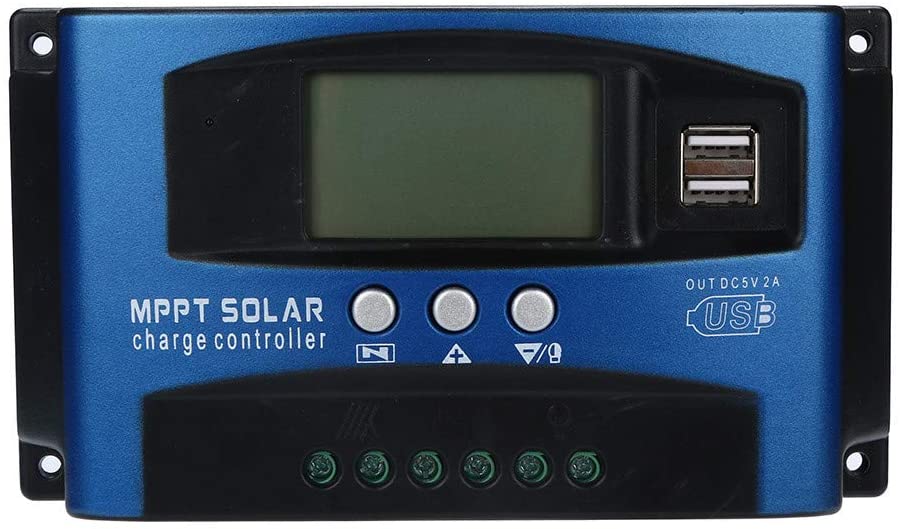

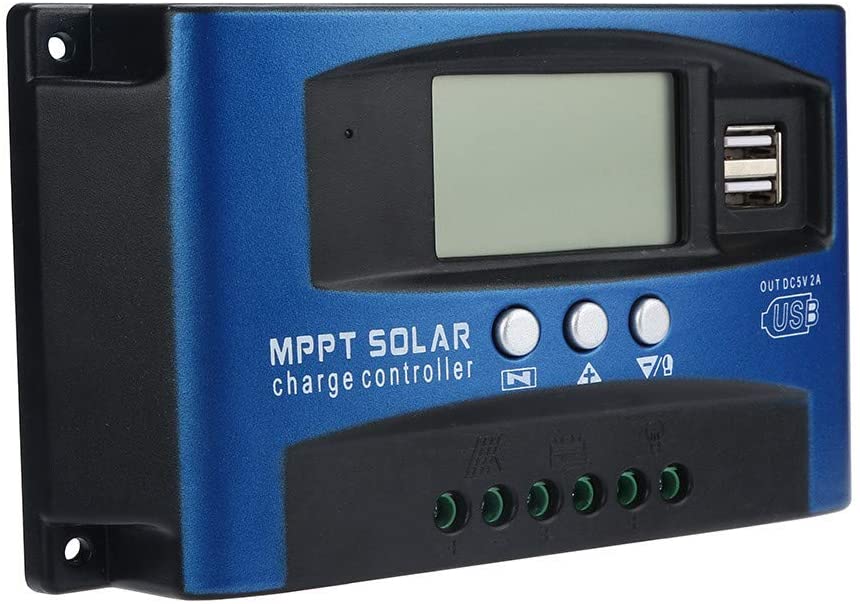

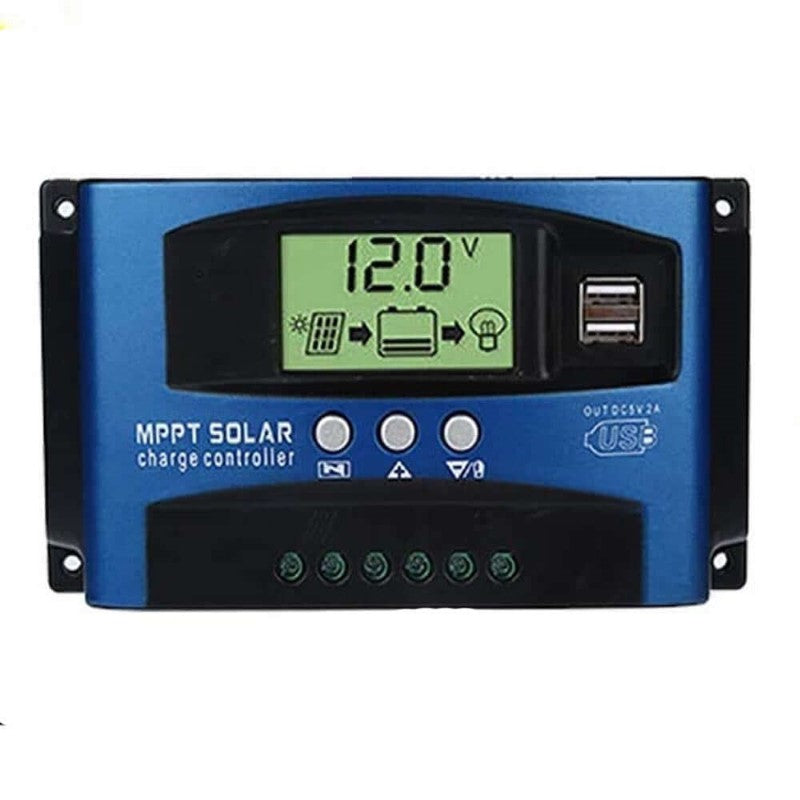

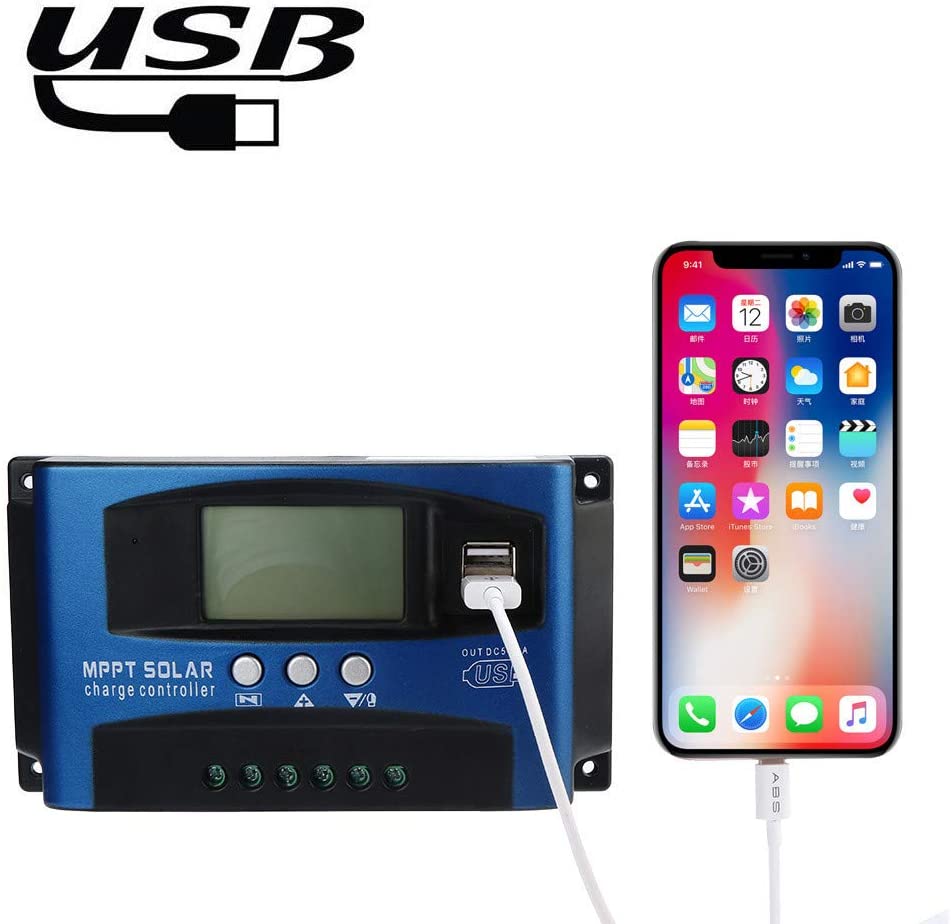

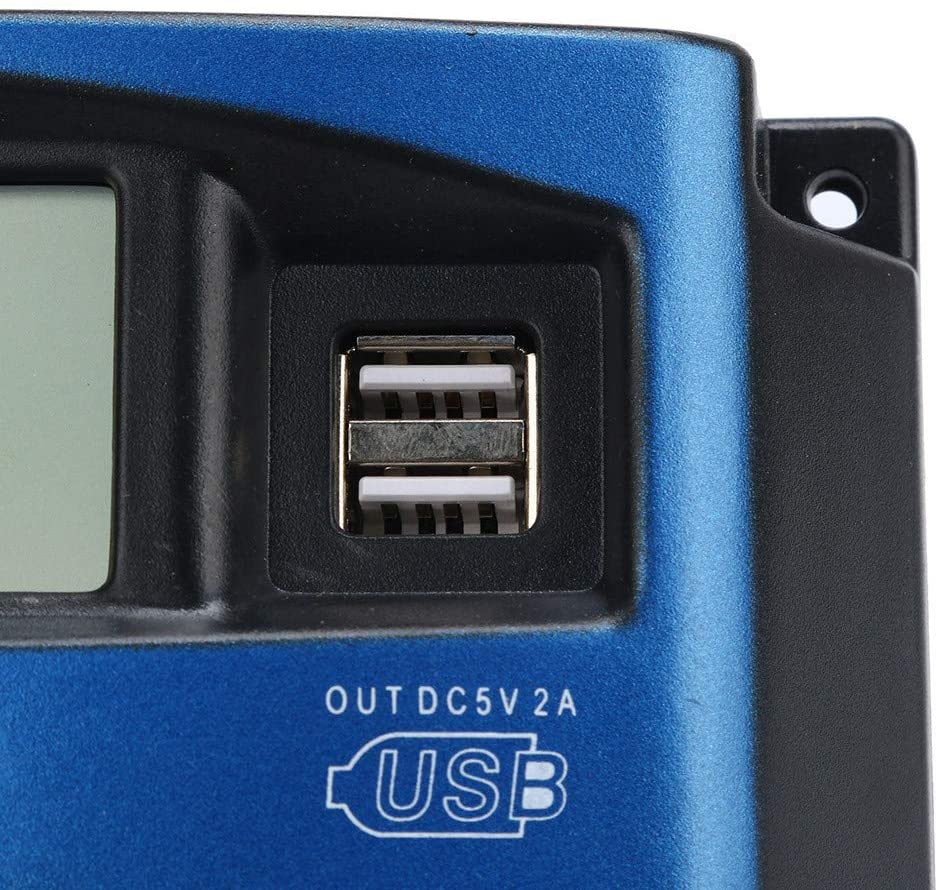

Solar Controller 50A Solar Panel Charge Controller Intelligent Regulator 12V/24V Auto Big LCD Solar Controller with 5V Dual USB Output for Home PV System



Features:

  1. Industrial-Grade Master Chip: Equipped with a high-precision 16-bit Analog-to-Digital (AD) sampling chip, this solar controller provides accurate real-time displays of temperature, charging current, and discharge current, giving you a clear view of power generation.

  2. Automatic PWM Tracking Charging: Utilizes high-efficiency Pulse Width Modulation (PWM) for tracking and charging. The controller features continuous detection during charging and bidirectional focusing tracking for optimal performance.

  3. Large-Screen LCD Display: Offers an adjustable display for charging and discharging parameters. With an ultra-wide range of adjustable settings, you can easily configure the parameters based on the battery characteristics. The display also includes a convenient time adjustment feature when the output is off.

  4. Three-Phase Charge Management: Implements a complete three-phase charging process that effectively protects the battery, extending its lifespan and ensuring more reliable performance.

  5. Comprehensive Protection Features: Built-in safeguards include overheating, over-current, short circuit, open circuit protection, and reverse connection protection. The controller automatically recovers after faults are resolved, ensuring the safety and longevity of your device.

  6. Bidirectional MoS Tube Anti-Backflow Circuit: Supports high-power charging with ultra-low heat generation, preventing backflow of current.

Specifications:

  • Rated Voltage: 12V / 24V
  • Rated Current: 30A
  • Maximum PV Voltage: 50V
  • Maximum PV Input Power: 390W (12V) / 390W (24V)

Functionality:

  1. Maintains the battery at full charge voltage.
  2. Prevents over-charging of the battery.
  3. Prevents over-discharging of the battery.
  4. Stops reverse charging from the battery to the solar panels during the night.
  5. Includes reverse polarity protection for both the battery and solar panels.
  6. Automatically disconnects the load from the system when battery voltage is low, and restarts when voltage returns to normal.

Package Includes:

  • 1 x Solar Panels Battery Charger Solar Controller PWM

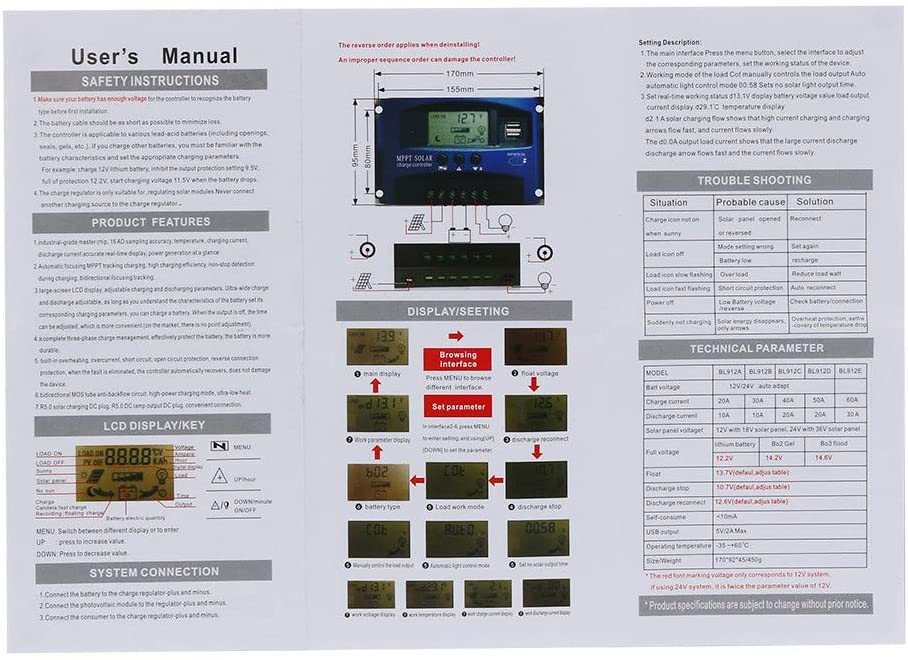

  • 1 x User Manual
