Product description

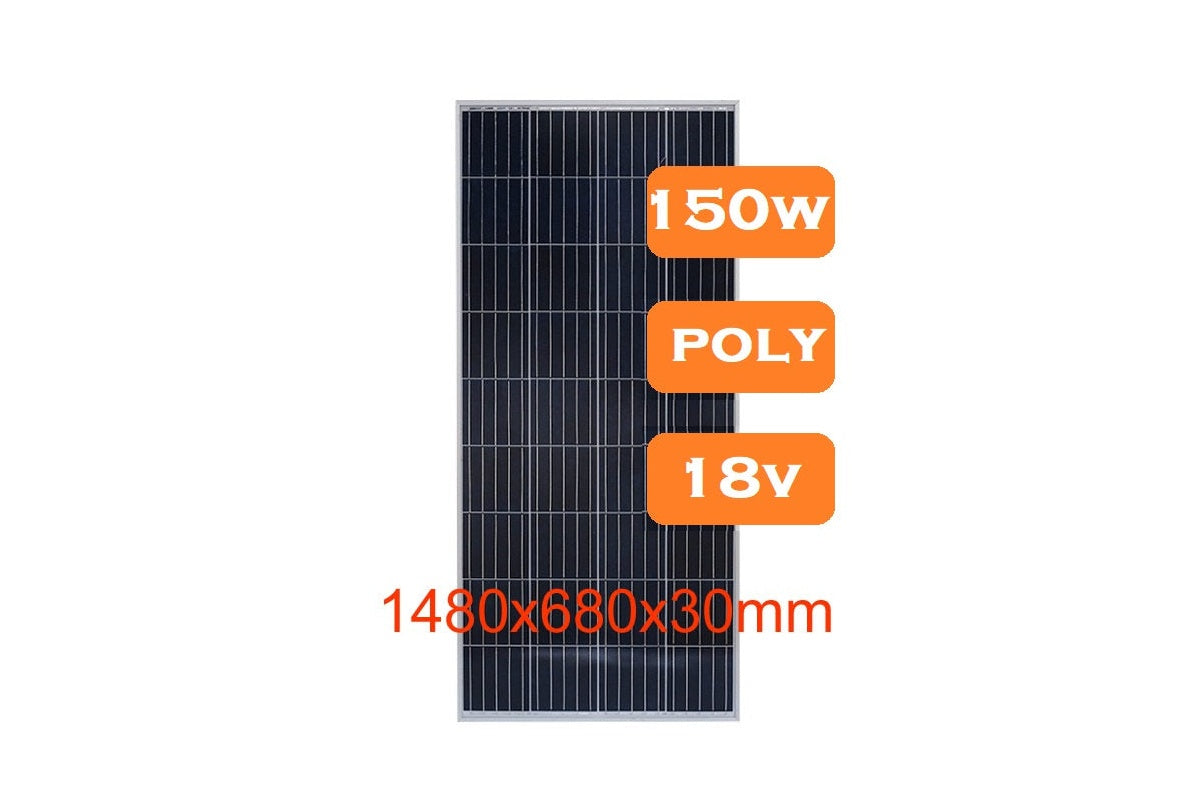

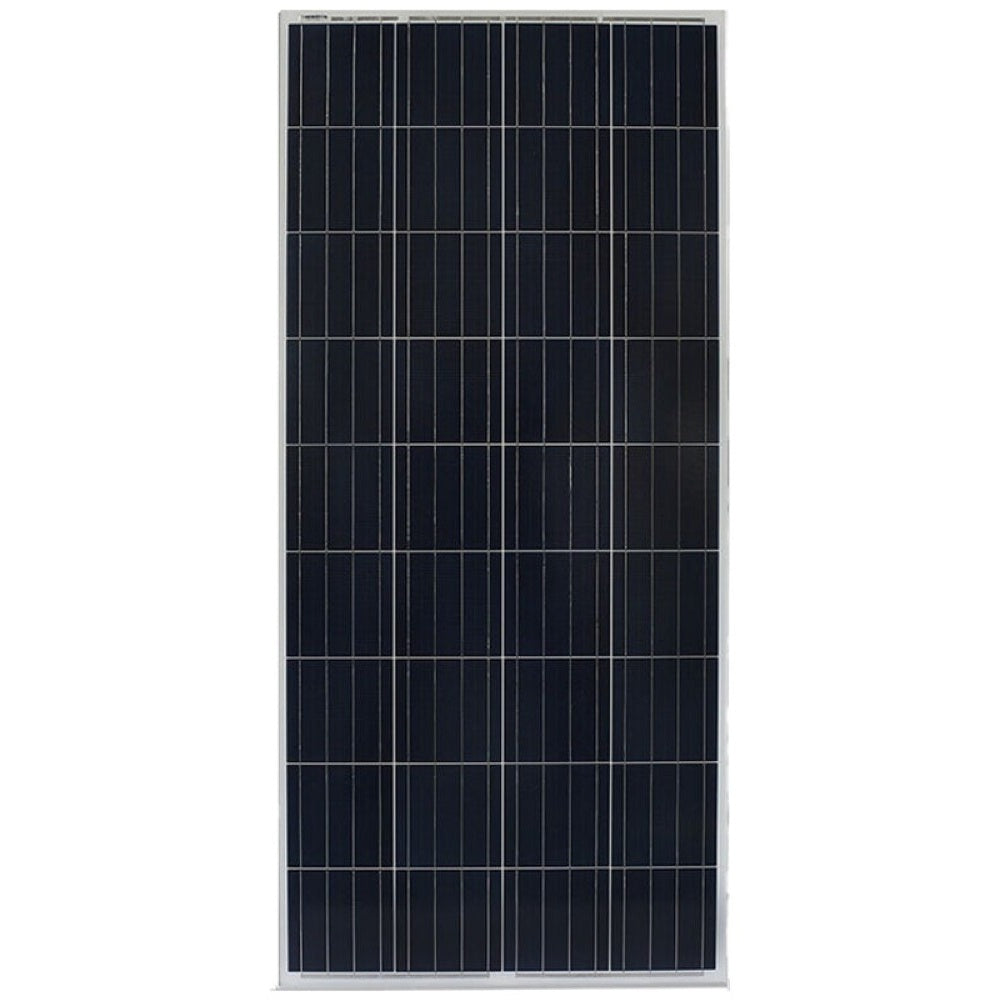

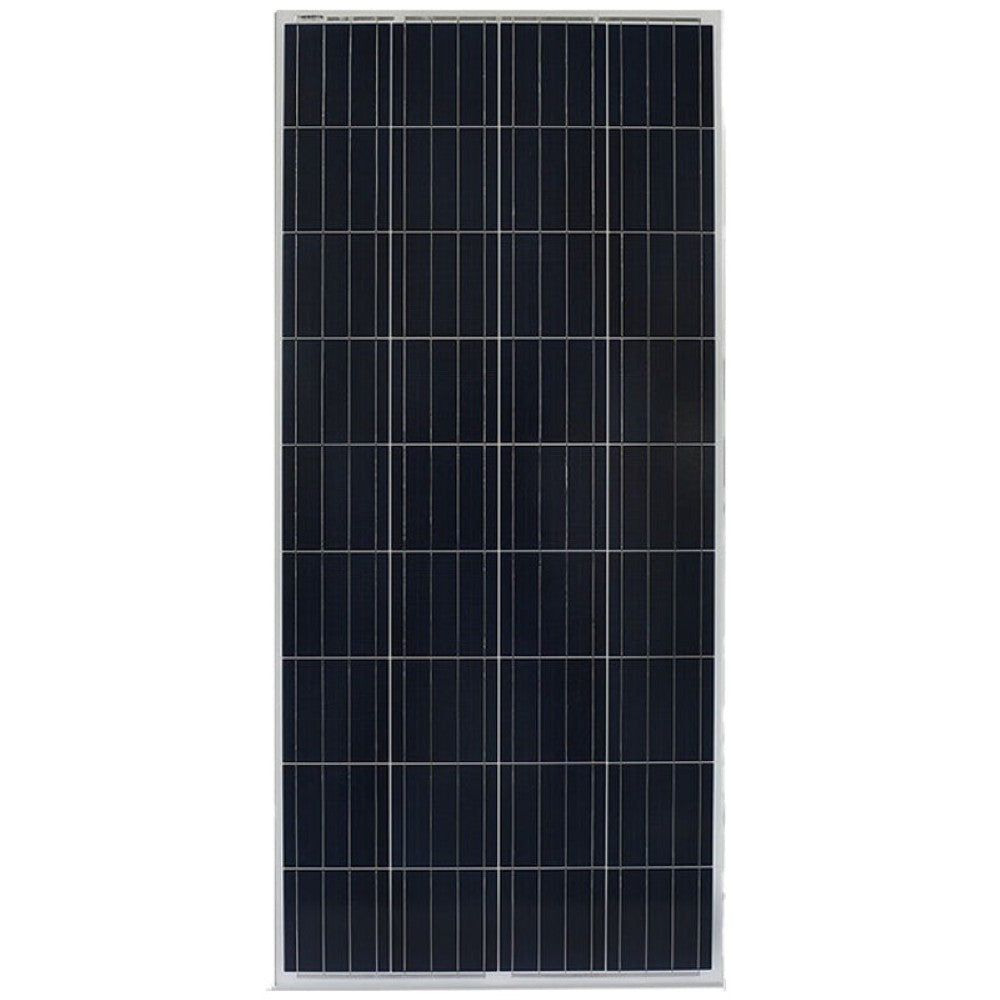

150W SOLAR PANEL

150W Polycrystalline Solar Panel Photovoltaic – Solar Panel for Boat, Caravan, RV and Home Solar System

High-efficiency 150W Polycrystalline Solar Panel designed for reliable off-grid power. This Solar Panel is ideal for boats, caravans, motorhomes, cabins, and home solar systems. Built with a strong aluminium frame and toughened glass, this Solar Panel is designed for durability and long-term outdoor performance.

Solar Panel Specifications

  • Maximum Power (Pmax): 150W

  • Maximum Power Voltage (Vmp): 18.0V

  • Maximum Power Current (Imp): 8.33A

  • Open Circuit Voltage (Voc): 21.6V

  • Short Circuit Current (Isc): 9.17A

  • Power Tolerance: ±3%

  • Maximum System Voltage: DC 1000V

  • Cable Length: 1m

  • Weight: 9.85 kg

  • Solar Panel Size: 1480 × 680 × 35 mm

Solar Panel Features

  • Lightweight Solar Panel design

  • Rigid anodised aluminium alloy frame

  • Toughened glass protection

  • High efficiency photovoltaic Solar Panel performance

  • Reliable Solar Panel for outdoor installations

Solar Charge Controller Specifications

  • Battery Voltage: 12V / 24V Auto

  • Charging Current: 30A

  • Discharging Current: 30A

  • Max Solar Input:

    • 50V (for 24V battery)

    • 25V (for 12V battery)

Charging Settings

  • Equalization:

    • 14.4V (Sealed Battery)

    • 14.2V (Gel Battery)

    • 14.6V (Flooded Battery)

  • Float Charge: 13.7V (default, adjustable)

  • Discharge Stop: 10.7V (default, adjustable)

  • Discharge Reconnect: 12.6V (default, adjustable)

Operating Temperature: -35°C ~ +60°C

Solar Panel Applications

This Solar Panel can be used in many solar power applications including:

  • Solar Panel for Power Stations

  • Solar Panel for Solar Power Generation Systems

  • Solar Panel for Street Lights

  • Solar Panel for Garden Lights

  • Solar Panel for Caravan and RV Solar Systems

  • Solar Panel for Boats and Marine Use

  • Solar Panel for Solar Cars

  • Solar Panel for Off-Grid Solar Systems

  • Solar Panel for many other solar energy applications

Package Includes

  • 1 × High Efficiency 150W Polycrystalline Solar Panel

Note: Wiring is included as shown in the photo. No extra wiring is included. You can purchase MC4 cable for Solar Panel separately from us if required.
