Diesel Engine Compression Tester

Diesel Engine Compression Tester – 16Pcs Cylinder Pressure Test Tool Kit for Car, Truck, Tractor & More

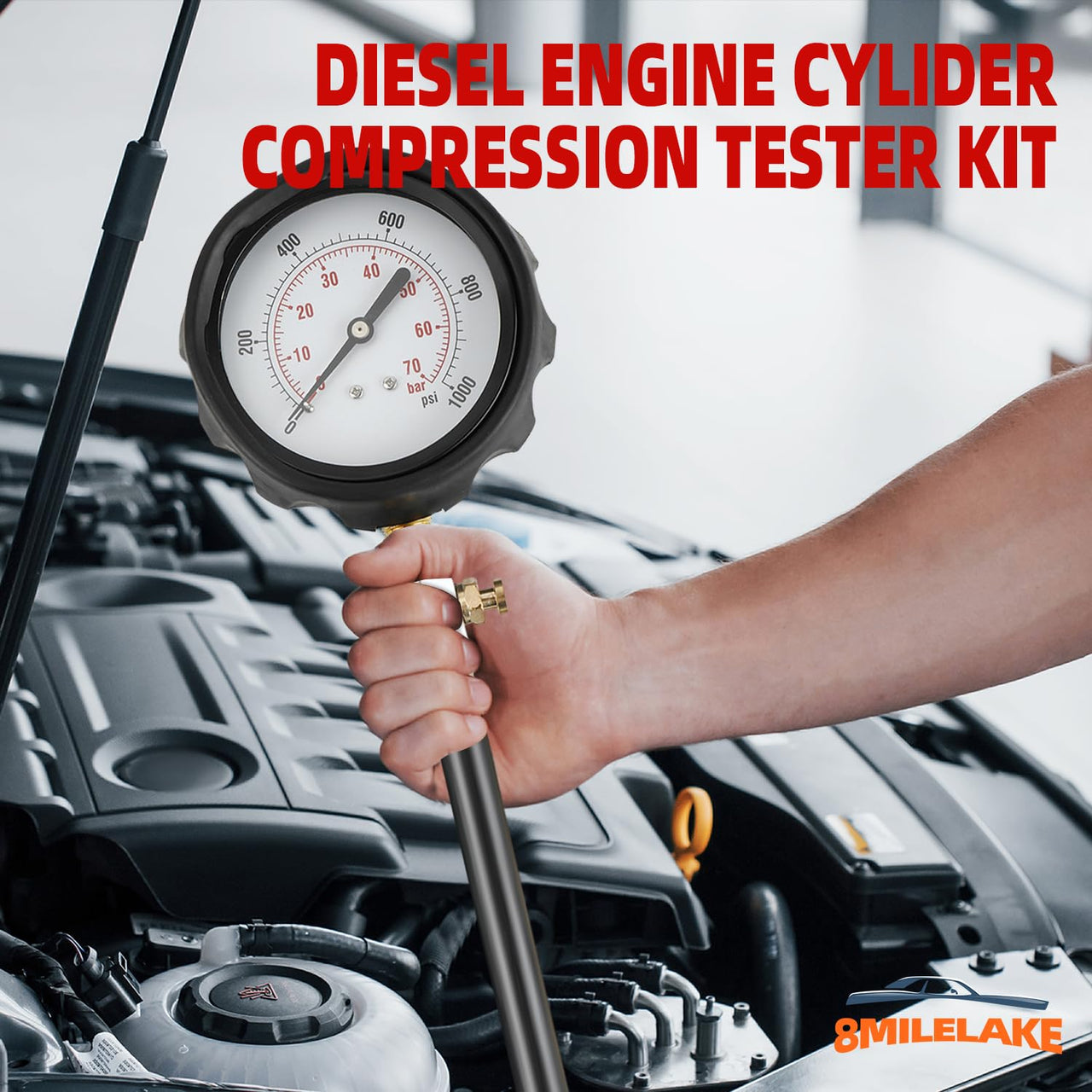

The Diesel Engine Compression Tester is an essential diagnostic tool for checking engine health in a wide range of diesel-powered vehicles. Whether you're a professional mechanic or DIY enthusiast, this 16-piece Diesel Engine Compression Tester kit offers precise, reliable, and high-pressure testing capability for fast and accurate results.

Key Features:

• Heavy-Duty Diesel Engine Compression Tester: Built with high-quality brass and metal, this Diesel Engine Compression Tester offers long-lasting durability and superior corrosion resistance, even in demanding work environments.

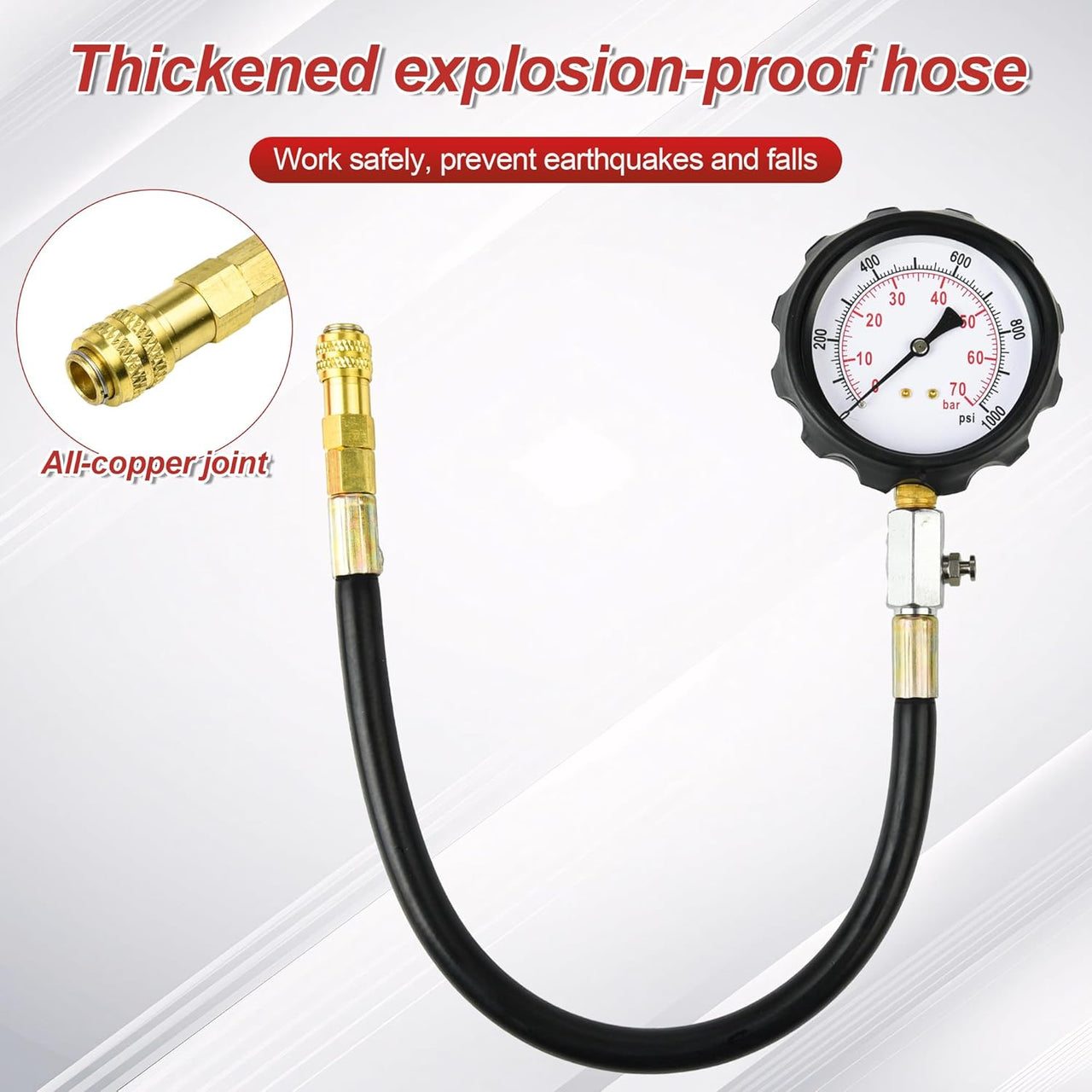

• High-Pressure Performance: The dual-scale gauge of the Diesel Engine Compression Tester reads up to 1000 PSI / 70 Bar, supported by reinforced, heat-resistant rubber hoses for safe operation under extreme pressure conditions.
• Versatile Diesel Engine Compression Tester Kit: Includes 9 glow plug adapters and 4 injector adapters for direct and indirect injection diesel engines, making this Diesel Engine Compression Tester compatible with most vehicles, including trucks, tractors, cars, and motorcycles.

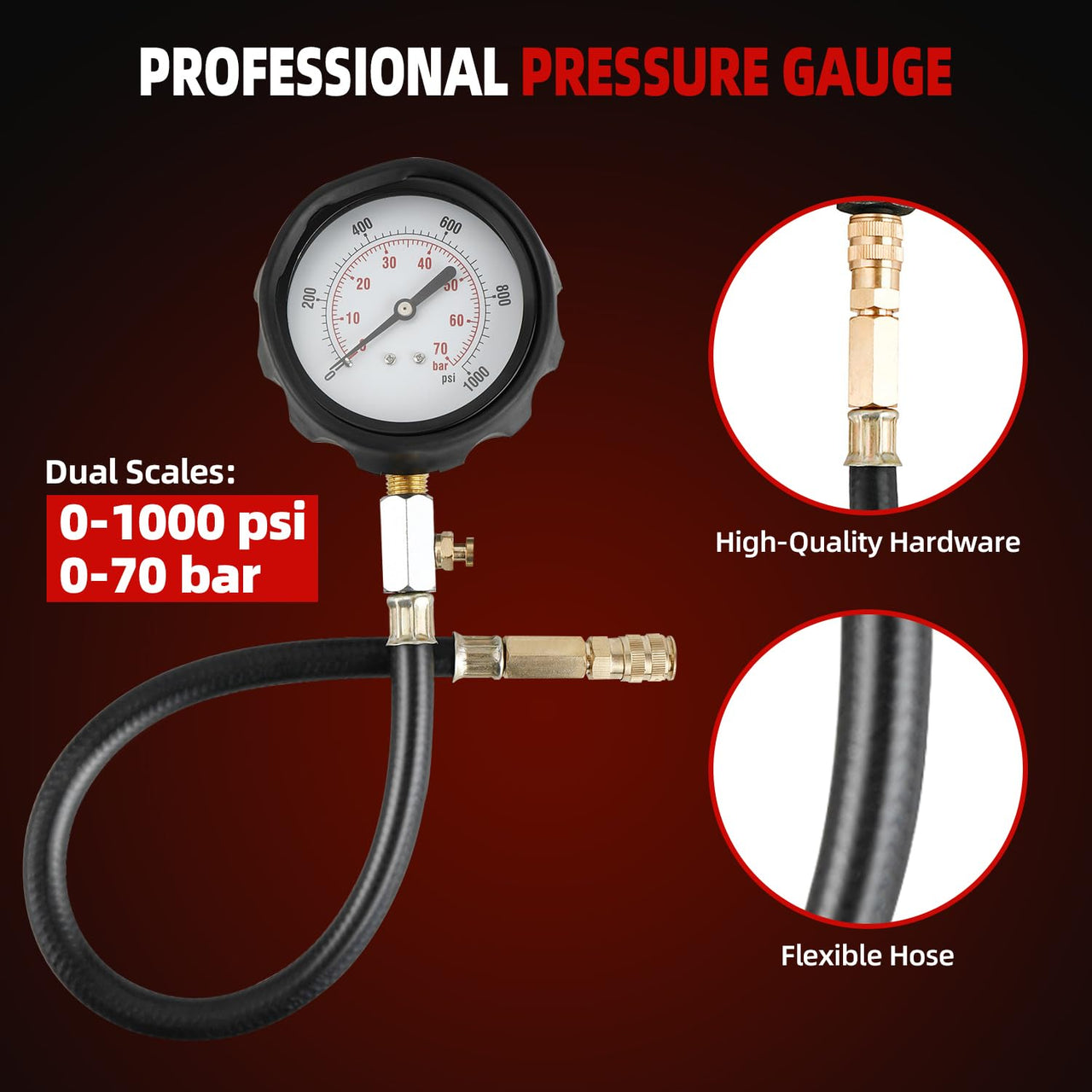

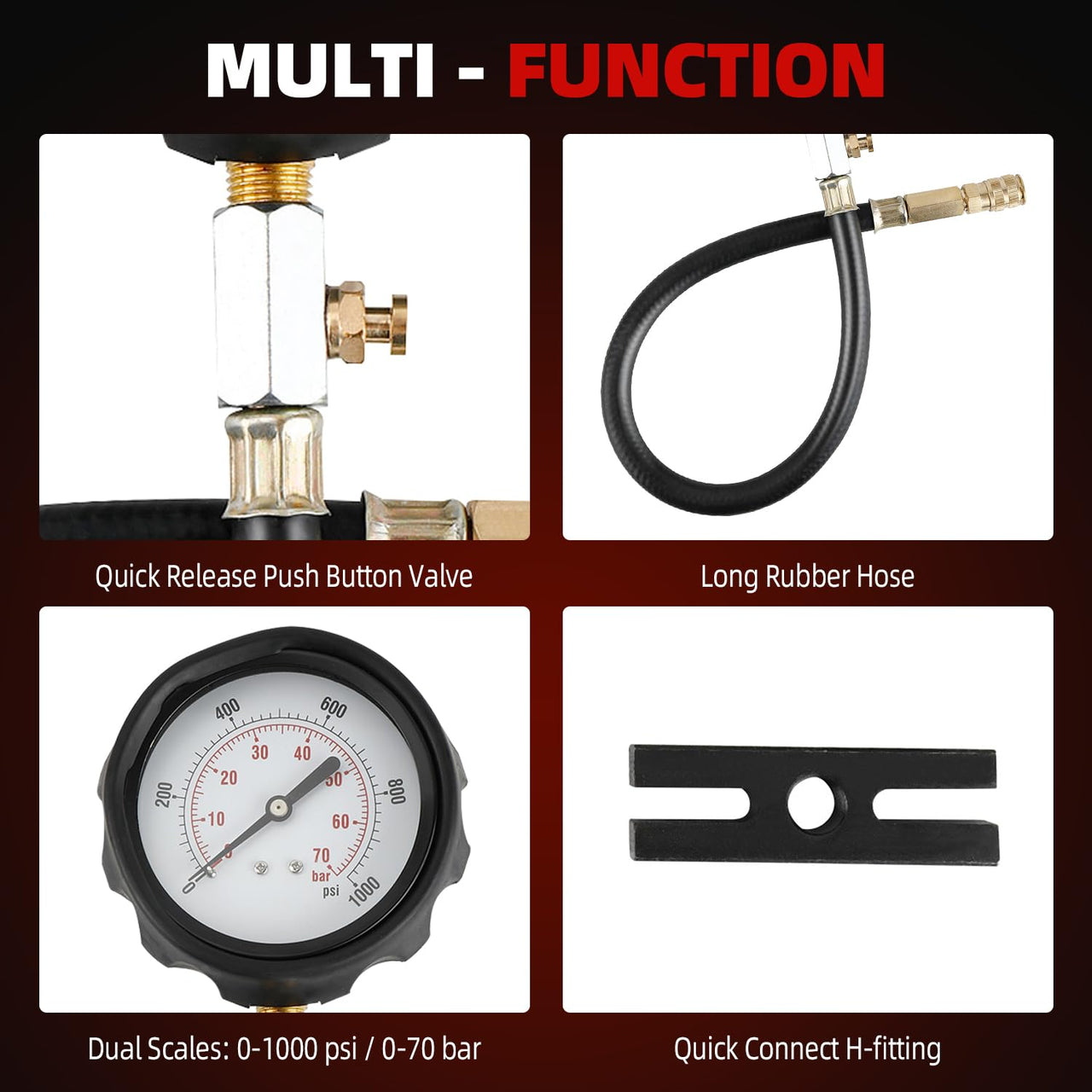

• Accurate Readings: The large, easy-to-read dial with PSI and Bar measurements ensures you can use this Diesel Engine Compression Tester globally, whether you follow metric or imperial units. Shockproof rubber casing ensures added safety and durability.
• All-In-One Diesel Engine Compression Tester Kit: Conveniently stored in a molded carry case, this 16-piece kit is compact, portable, and ready for use in any workshop or on the go.

How to Use the Diesel Engine Compression Tester:

1. Remove all glow plugs and label each cylinder.
2. Select the appropriate adapter and screw it into the glow plug or injector hole.
3. Disable fuel injection, crank the engine, and record the compression shown on the Diesel Engine Compression Tester.
4. Release pressure via the release valve and repeat for all cylinders.

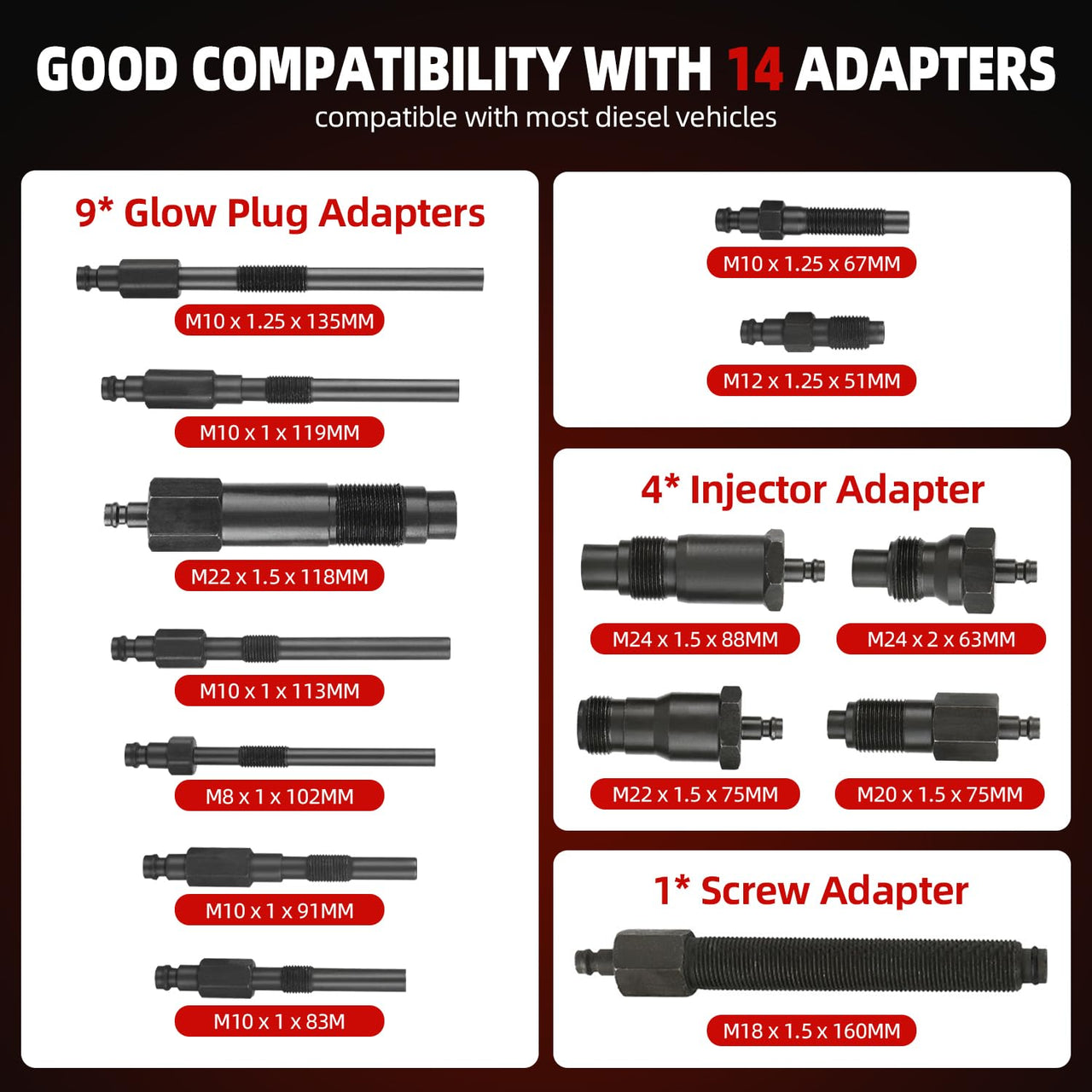

Included Glow Plug Adapters (Thread / Length):

• M10x1.0: 83mm, 91mm, 102mm, 113mm, 119mm
• M10x1.25: 64mm, 135mm
• M12x1.25: 47mm
• M22x1.5: 118mm

Included Injector Adapters (Thread / Length):

• M20x1.5: 75mm
• M22x1.5: 73mm
• M24x1.5: 88mm
• M24x2.0: 63mm

Package Includes:

• 1 x Diesel Engine Compression Tester Kit
• 1 x User Manual
• 1 x Sturdy Carry Case

If you're diagnosing engine issues or performing regular maintenance, this 16-piece Diesel Engine Compression Tester kit is the go-to solution for fast, safe, and accurate compression checks. Add this high-quality Diesel Engine Compression Tester to your toolkit today and ensure your diesel engine runs at its best.
